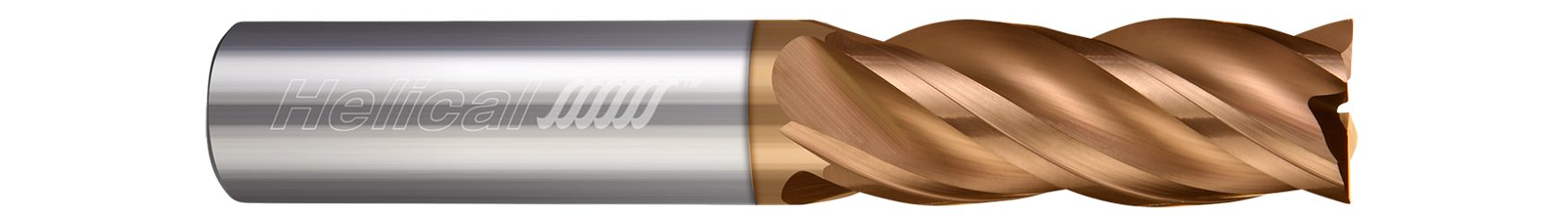

Square profile end mill designed to extend tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc, and engineered with eccentric relief for maximum edge strength in both roughing and finishing applications.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
- Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered with eccentric relief for maximum edge strength in both roughing and finishing applications
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Finish/Coating | TPLUS |
| Center Cutting (Yes/No) | Yes |
