Helical Solutions

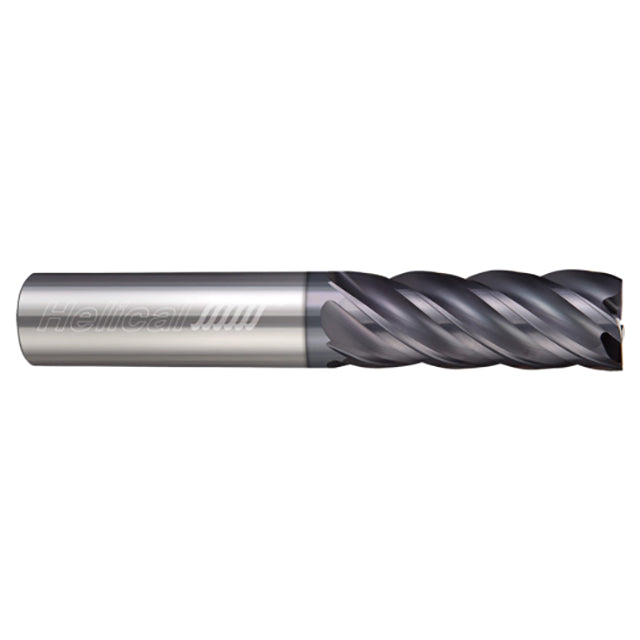

Helical Solutions 81703 | HEV-S-50156 5/32" Diameter x 3/16" Shank x 3/16" LOC x 2" OAL 5 Flute Single End Aplus Coated Solid Carbide Square End Mill

Helical Solutions 81703 | HEV-S-50156 5/32" Diameter x 3/16" Shank x 3/16" LOC x 2" OAL 5 Flute Single End Aplus Coated Solid Carbide Square End Mill

SKU: 25103802

Precio habitual $23.90 USD
Precio habitual $23.90 USD Precio de oferta $23.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles
Product Specifications
Tool Description HEV-S-50156
Mill Diameter (Inch) 5/32"
Mill Diameter (Decimal Inch) 0.1562"
Number of Flutes 5
Length of Cut (Inch) 3/16"
Length of Cut (Decimal Inch) 0.1875"
Material Solid Carbide
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Finish/Coating Aplus
Center Cutting (Yes/No) Yes
Application Steels
LOC Multiple 1x
Shank Length (Inch) 1-13/16"
Shank Length (Decimal Inch) 1.8125"
Chip Breaker (Yes/No) No
Weldon Flat (Yes/No) No
Metric (Yes/No) No
Coolant Through (Yes/No) No
