Helical Solutions

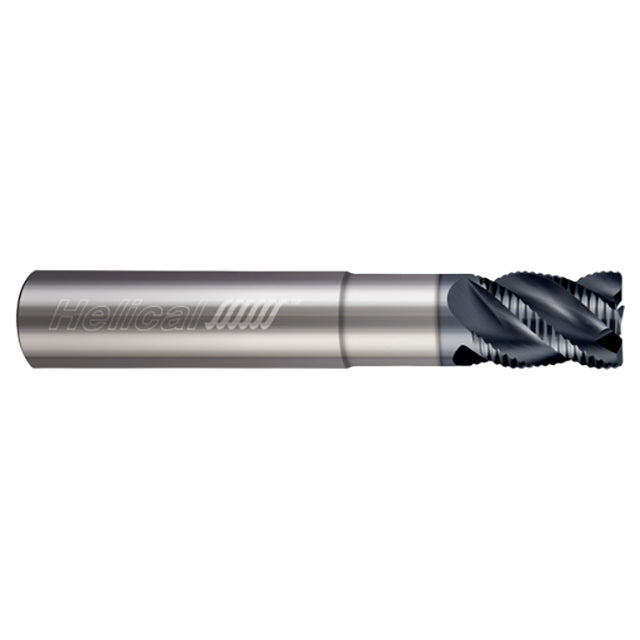

Helical Solutions 65077 | HXVR-RN-R-50375-R.040 3/8" Diameter x 3/8" Shank x 1/2" LOC x 1-1/8" Reach x 2-1/2" OAL x 0.0400" Corner Radius 5 Flute Aplus Coated Solid Carbide Reduced Neck Roughing End Mill For Steels, High-Temp Alloys & Titanium

Helical Solutions 65077 | HXVR-RN-R-50375-R.040 3/8" Diameter x 3/8" Shank x 1/2" LOC x 1-1/8" Reach x 2-1/2" OAL x 0.0400" Corner Radius 5 Flute Aplus Coated Solid Carbide Reduced Neck Roughing End Mill For Steels, High-Temp Alloys & Titanium

SKU: 25101778

Precio habitual $81.90 USD
Precio habitual $81.90 USD Precio de oferta $81.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 68 Grams

Ver todos los detalles
Product Specifications
Tool Description HXVR-RN-R-50375-R.040
Mill Diameter (Inch) 3/8"
Mill Diameter (Decimal Inch) 0.3750"
Number of Flutes 5
Length of Cut (Inch) 1/2"
Length of Cut (Decimal Inch) 0.5000"
Material Solid Carbide
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Finish/Coating Aplus
Overall Reach (Inch) 1-1/8"
Overall Reach (Decimal Inch) 1.1250"
Center Cutting (Yes/No) Yes
Application Steels
Neck Diameter (Decimal Inch) 0.3560"
Corner Radius (Decimal Inch) 0.0400"
LOC Multiple 1x
Reach Multiple 3x
Shank Length (Inch) 1-3/8"
Shank Length (Decimal Inch) 1.3750"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
