Helical Solutions

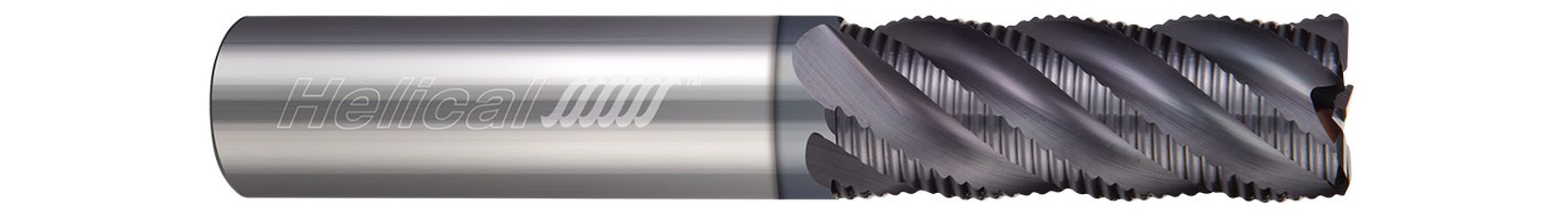

Helical Solutions 55182W | HXVR-R-50500-R.040 1/2" Diameter x 1/2" Shank x 1-1/4" LOC x 3" OAL x 0.0400" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 55182W | HXVR-R-50500-R.040 1/2" Diameter x 1/2" Shank x 1-1/4" LOC x 3" OAL x 0.0400" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188318

$127.40 USD
$127.40 USD $127.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

The staggered "low profile" edge geometry of this multi-flute rougher allows for superior chip control and minimized cutting forces on the tool. This results in smoother machining and a more efficient metal removal process.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered with staggered "low profile" edge geometry for chip control and minimized cutting forces
  • Available in 4 flute and 5 flute options
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.5000" (1/2)
Length of Cut (Inch) 1.2500" (1-1/4)
Overall Length (Inch) 3"
Corner Radius (Inch) 0.0400"
No of Flutes 5
Shank Diameter (Inch) 0.5000" (1/2)
Finish/Coating APLUS
Center Cutting (Yes/No) Yes
