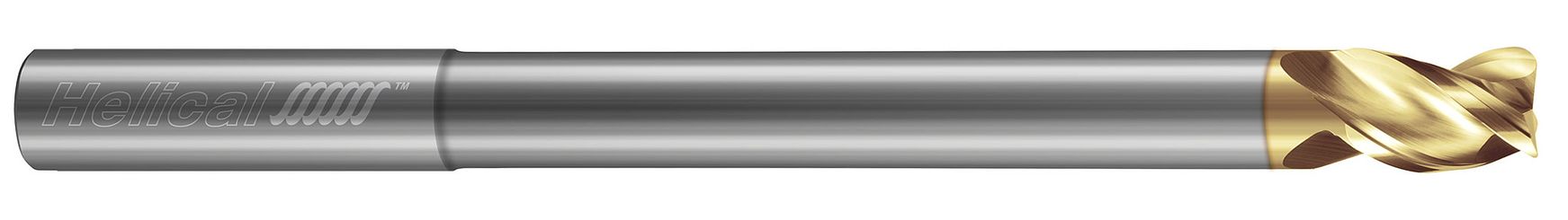

This 3 flute, 40 Degree Helix end mill for aluminum has a variable pitch design that reduces chatter and harmonics, prolonging tool life and leaving a higher quality part finish. Its reduced neck design provides it with maximum strength in long reach and deep pocketing applications.
- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a specialized combination of features for excellent performance in roughing and finishing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Wiper flat design leaves superior floor finish*
- Excellent performance in High Efficiency Milling (HEM)
- Center cutting
- h6 shank tolerance for high precision tool holders
- Uncoated tool offers an excellent option for aluminum finishing applications
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 1" |
| Neck Diameter (Inch) | 0.9500" |
| Length of Cut (Inch) | 1.2500" (1-1/4) |
| Overall Reach (Inch) | 3.3750" (3-3/8) |
| Overall Length (Inch) | 6" |
| Corner Radius (Inch) | 0.0600" |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 1" |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
