Helical Solutions

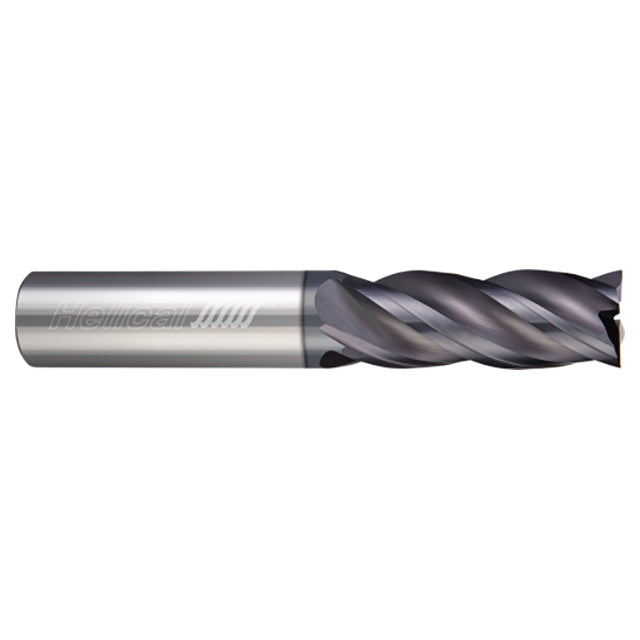

Helical Solutions 30257 | HSV-M-40312 5/16" Diameter x 5/16" Shank x 1-1/4" LOC x 3" OAL 4 Flute Single End Aplus Coated Solid Carbide Square End Mill

Helical Solutions 30257 | HSV-M-40312 5/16" Diameter x 5/16" Shank x 1-1/4" LOC x 3" OAL 4 Flute Single End Aplus Coated Solid Carbide Square End Mill

SKU: 25100692

Precio habitual $48.90 USD
Precio habitual $48.90 USD Precio de oferta $48.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 45 Grams

Ver todos los detalles
Product Specifications
Tool Description HSV-M-40312
Mill Diameter (Inch) 5/16"
Mill Diameter (Decimal Inch) 0.3125"
Number of Flutes 4
Length of Cut (Inch) 1-1/4"
Length of Cut (Decimal Inch) 1.2500"
Material Solid Carbide
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Finish/Coating Aplus
Center Cutting (Yes/No) Yes
Application Steels
LOC Multiple 4x
Shank Length (Inch) 1-3/4"
Shank Length (Decimal Inch) 1.7500"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
