Helical Solutions

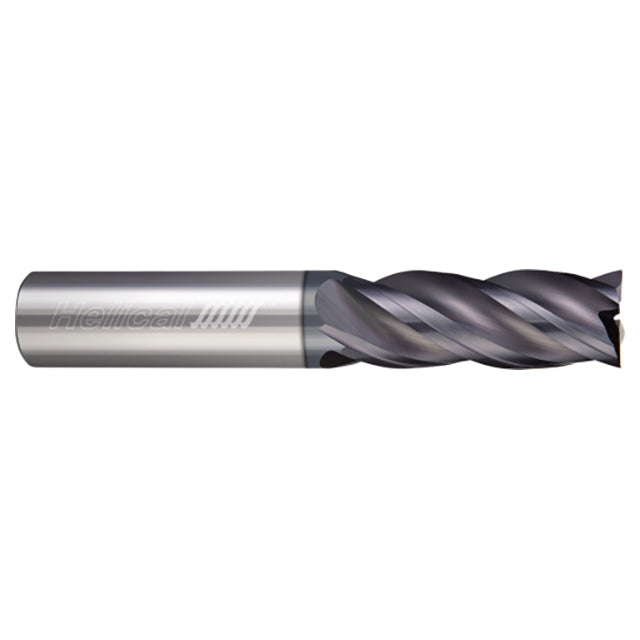

Helical Solutions 30137W | HSV-S-40250 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL 4 Flute Single End Aplus Coated Solid Carbide Square End With Weldon Flat

Helical Solutions 30137W | HSV-S-40250 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL 4 Flute Single End Aplus Coated Solid Carbide Square End With Weldon Flat

SKU: 25102756

Precio habitual $35.80 USD
Precio habitual $35.80 USD Precio de oferta $35.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles
Product Specifications
Tool Description HSV-S-40250
Mill Diameter (Inch) 1/4"
Mill Diameter (Decimal Inch) 0.2500"
Number of Flutes 4
Length of Cut (Inch) 3/8"
Length of Cut (Decimal Inch) 0.3750"
Material Solid Carbide
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Finish/Coating Aplus
Center Cutting (Yes/No) Yes
Application Steels
LOC Multiple 1.5x
Shank Length (Inch) 1-5/8"
Shank Length (Decimal Inch) 1.6250"
Chip Breaker (Yes/No) No
Weldon Flat (Yes/No) Yes
Metric (Yes/No) No
Coolant Through (Yes/No) No
