Helical Solutions

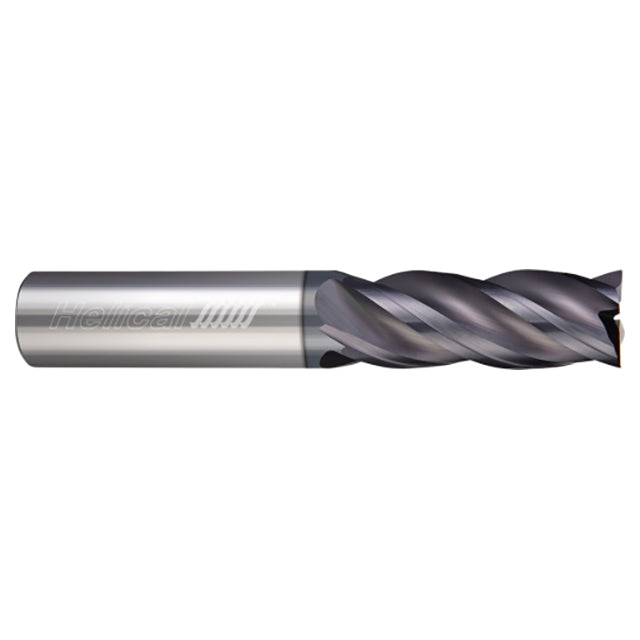

Helical Solutions 30092 | HSV-R-40187 3/16" Diameter x 3/16" Shank x 5/8" LOC x 2-1/2" OAL 4 Flute Single End Aplus Coated Solid Carbide Square End Mill

Helical Solutions 30092 | HSV-R-40187 3/16" Diameter x 3/16" Shank x 5/8" LOC x 2-1/2" OAL 4 Flute Single End Aplus Coated Solid Carbide Square End Mill

SKU: 25100316

Precio habitual $25.70 USD
Precio habitual $25.70 USD Precio de oferta $25.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles
Product Specifications
Tool Description HSV-R-40187
Mill Diameter (Inch) 3/16"
Mill Diameter (Decimal Inch) 0.1875"
Number of Flutes 4
Length of Cut (Inch) 5/8"
Length of Cut (Decimal Inch) 0.6250"
Material Solid Carbide
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Finish/Coating Aplus
Center Cutting (Yes/No) Yes
Application Steels
LOC Multiple 3x
Shank Length (Inch) 1-7/8"
Shank Length (Decimal Inch) 1.8750"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
