Helical Solutions

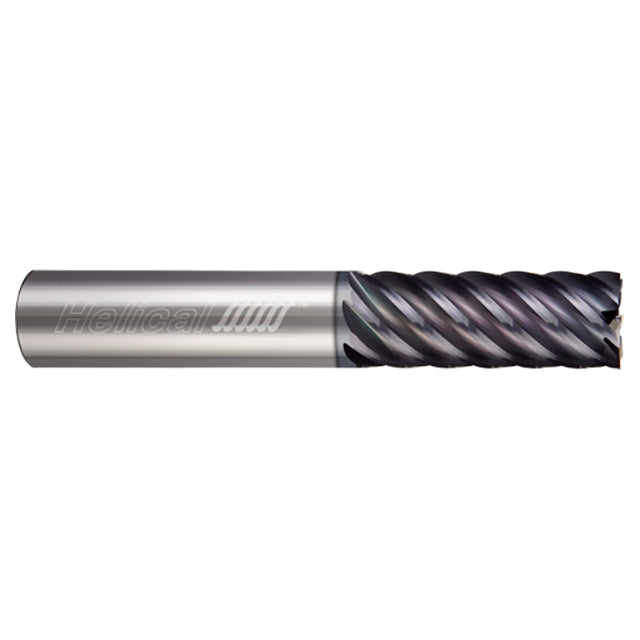

Helical Solutions 24257 | HSF-R-70437 7/16" Diameter x 7/16" Shank x 1" LOC x 2-3/4" OAL 7 Flute Single End Aplus Coated Solid Carbide Square End Mill

Helical Solutions 24257 | HSF-R-70437 7/16" Diameter x 7/16" Shank x 1" LOC x 2-3/4" OAL 7 Flute Single End Aplus Coated Solid Carbide Square End Mill

SKU: 25100236

Precio habitual $66.70 USD
Precio habitual $66.70 USD Precio de oferta $66.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 91 Grams

Ver todos los detalles
Product Specifications
Tool Description HSF-R-70437
Mill Diameter (Inch) 7/16"
Mill Diameter (Decimal Inch) 0.4375"
Number of Flutes 7
Length of Cut (Inch) 1"
Length of Cut (Decimal Inch) 1.0000"
Material Solid Carbide
Overall Length (Inch) 2-3/4"
Overall Length (Decimal Inch) 2.7500"
Shank Diameter (Inch) 7/16"
Shank Diameter (Decimal Inch) 0.4375"
Finish/Coating Aplus
Center Cutting (Yes/No) Yes
Application Steels
LOC Multiple 2x
Shank Length (Inch) 1-3/4"
Shank Length (Decimal Inch) 1.7500"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
