Product Specifications

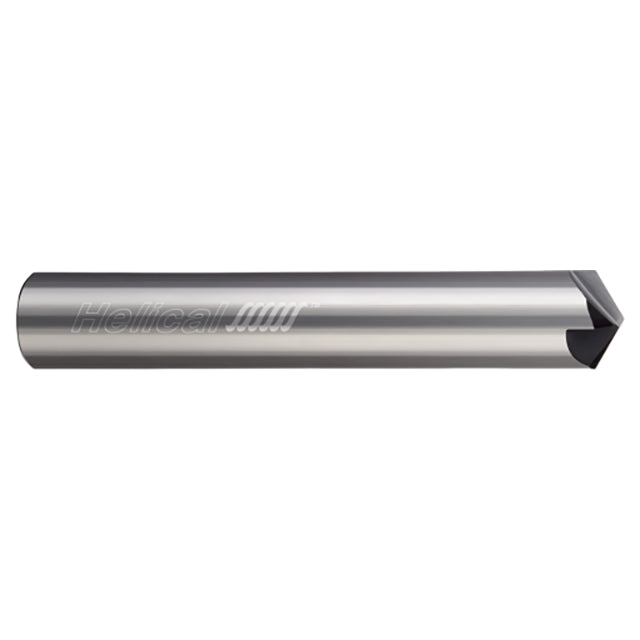

Tool Description | HCM120-40500 |
MIll Diameter (Inch) | 1/2" |
MIll Diameter (Decimal Inch) | 0.5000" |
Number of Flutes | 4 |
Length of Cut (Decimal Inch) | 0.1500" |
Material | Solid Carbide |
Overall Length (Inch) | 3" |
Overall Length (Decimal Inch) | 3.0000" |
Shank Diameter (Inch) | 1/2" |
Shank Diameter (Decimal Inch) | 0.5000" |
Finish/Coating | Uncoated |
Included Angle | 120 Degree |
Center Cutting (Yes/No) | Yes |
Tip (Decimal Inch) | 0.0400" |
Web Thickness (Decimal Inch) | 0.0350" |
Shank Length (Inch) | 2.8500" |
Shank Length (Decimal Inch) | 2.8500" |
Chip Breaker (Yes/No) | No |
Metric (Yes/No) | No |
