Helical Solutions

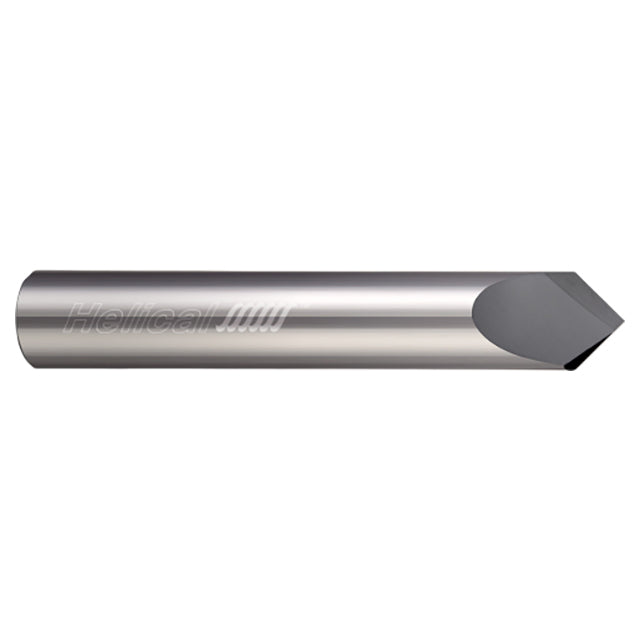

Helical Solutions 06015 | HCM90-20125 1/8" Cutter Head Diameter x 1/8" Shank x 2" OAL x 90 Degree Included Angle 2 Flute Uncoated Coated Solid Carbide Chamfer Mill

Helical Solutions 06015 | HCM90-20125 1/8" Cutter Head Diameter x 1/8" Shank x 2" OAL x 90 Degree Included Angle 2 Flute Uncoated Coated Solid Carbide Chamfer Mill

SKU: 25101188

Precio habitual $18.50 USD
Precio habitual $18.50 USD Precio de oferta $18.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

250 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles
Product Specifications
Tool Description HCM90-20125
MIll Diameter (Inch) 1/8"
MIll Diameter (Decimal Inch) 0.1250"
Number of Flutes 2
Length of Cut (Inch) 1/16"
Length of Cut (Decimal Inch) 0.0620"
Material Solid Carbide
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Finish/Coating Uncoated
Included Angle 90 Degree
Center Cutting (Yes/No) Yes
Tip (Inch) 1/64"
Tip (Decimal Inch) 0.0150"
Web Thickness (Decimal Inch) 0.0125"
Shank Length (Inch) 1.9380"
Shank Length (Decimal Inch) 1.9380"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
