- Oversized, common shanks to maintain strength, stiffness, and accuracy
- Straight flutes for through and blind hole applications
- h6 shank tolerance for high precision tool holders
- CNC ground in the USA
- Solid carbide
Product Specifications

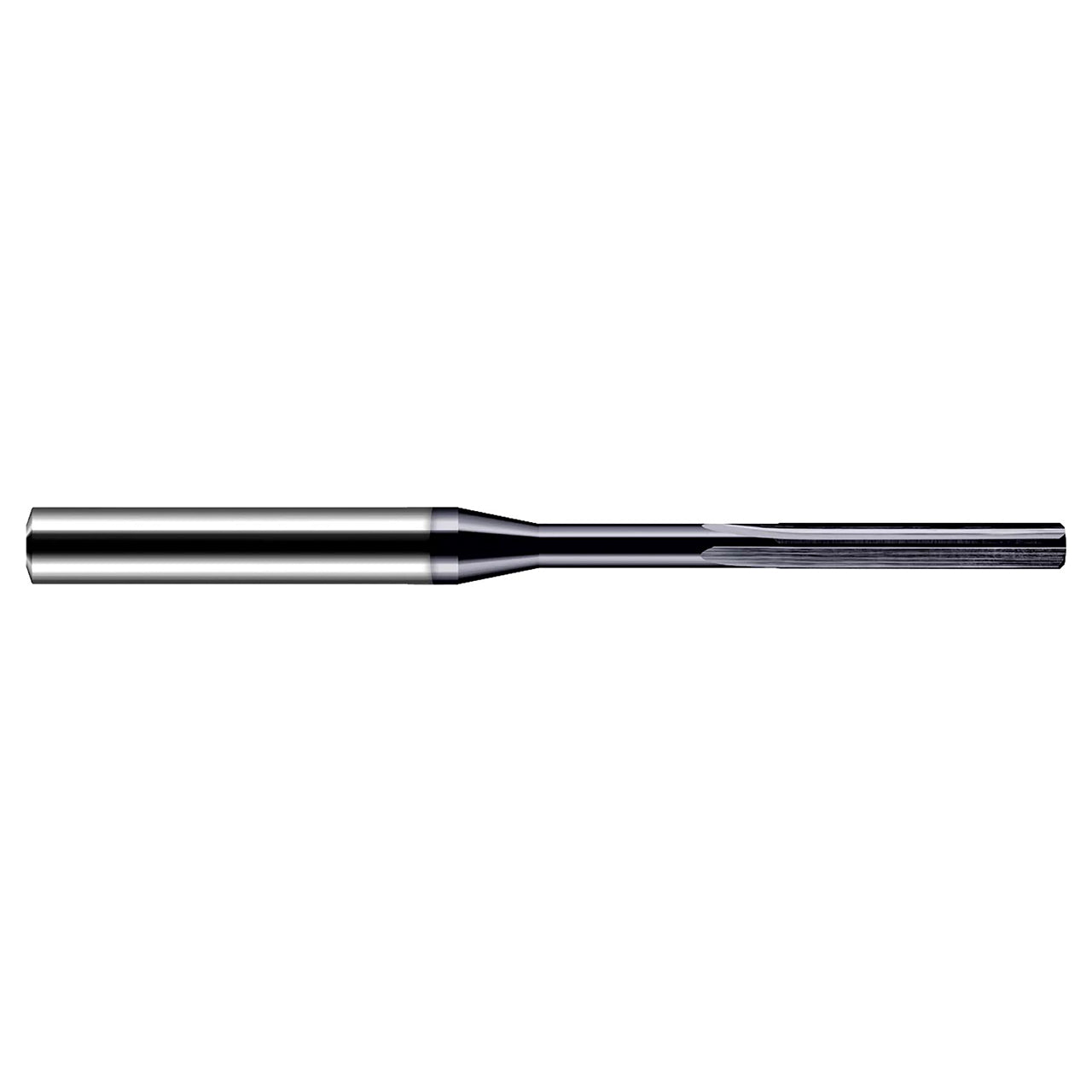

| Tool Number | RSB1270-C3 |
| Reamer Diameter (Inch) | 0.1270" |
| Neck Diameter (Inch) | 0.1230" |
| Overall Reach (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Chamfer Length (Inch) | 0.0114" |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 4 |
| LOC Multiple | 6x |
| Reach Multiple | 12x |
| Margin Length (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | C3 |
