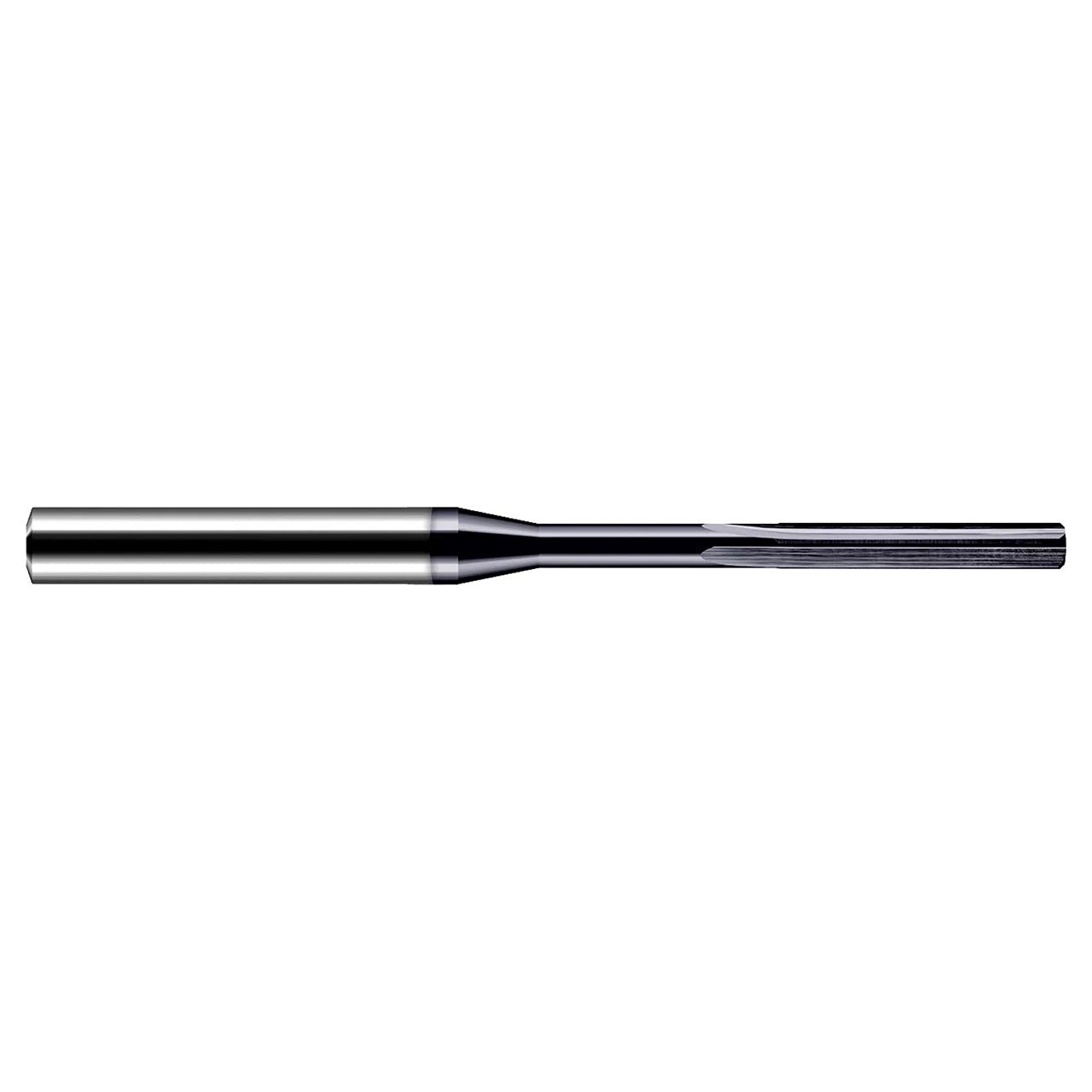

- Oversized, common shanks to maintain strength, stiffness, and accuracy
- Straight flutes for through and blind hole applications
- h6 shank tolerance for high precision tool holders
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | RSB0815 |
| Reamer Diameter (Inch) | 0.0815" |
| Neck Diameter (Inch) | 0.0795" |
| Overall Reach (Inch) | 1.0000" (1) |
| Overall Length (Inch) | 2.0000" (2) |
| Chamfer Length (Inch) | 0.0073" |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 4 |
| LOC Multiple | 7x |
| Reach Multiple | 12x |
| Margin Length (Inch) | 0.5620" (9/16) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | Uncoated |
