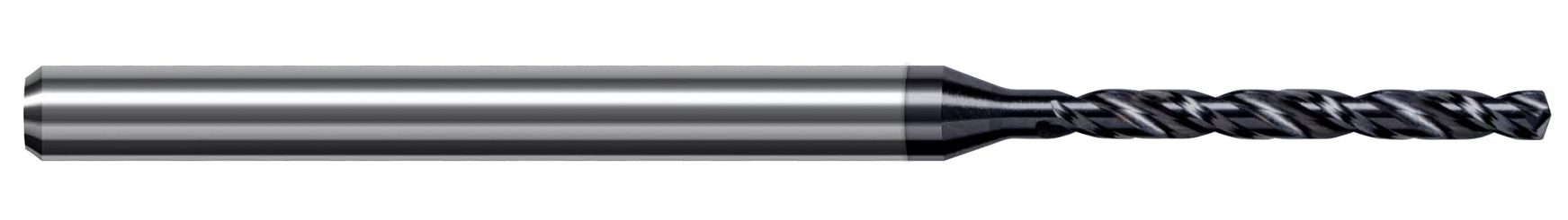

Optimized for drilling hardened tool, die, and mold steels 46Rc to 68Rc with outstanding performance in high temperature alloys and difficult-to-machine steels, this offering of High Performance Miniature Drills are available for 3x, 5x, 8x, 10x, and 12x hole depths.
- 140 Degree point angle
- Specialized flute shape for improved chip evacuation and maximum rigidity
- Double margin design for exceptional hole accuracy and finish
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- h6 shank tolerance for high precision tool holders
- Select carbide grade for improved tool life
- CNC ground in the USA
Product Specifications
| Drill Diameter (mm) | 0.762 mm |
| Flute Length (mm) | 9.000 mm |
| Overall Length (mm) | 50.000 mm |
| Number of Flutes | 2 |
| Point Angle | 140 |
| LOC Multiple | 10x |
| Shank Diameter (mm) | 3.000 mm |
| Metric | Yes |
| Coating/Finish | C6 |
