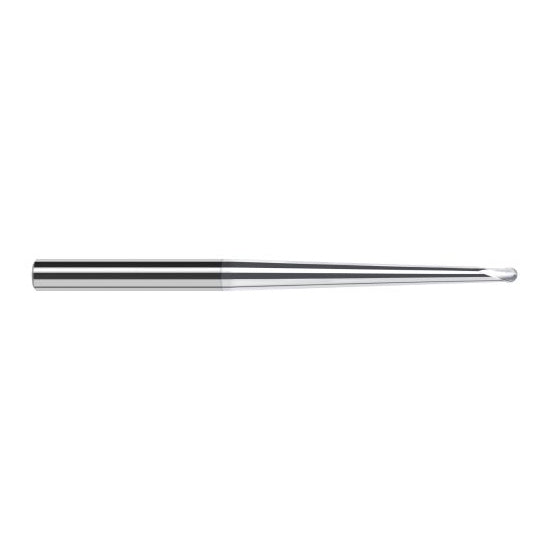

Harvey Tool 997887-C8 | 3/16" Diameter x 1/4" Shank x 0.1500" LOC x 2-1/2" OAL 2FL TiB2 Coated Carbide Ball End Mill

Harvey Tool 997887-C8 | 3/16" Diameter x 1/4" Shank x 0.1500" LOC x 2-1/2" OAL 2FL TiB2 Coated Carbide Ball End Mill

SKU: 25110554

Precio habitual $80.40 USD
Precio habitual $80.40 USD Precio de oferta $80.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 27 Grams

12 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles
Product Specifications
Milling Diameter (Inch) 3/16"
Milling Diameter (Decimal Inch) 0.1875"
Number of Flutes 2
Length Of Cut (Decimal Inch) 0.1500"
Overall Reach (Inch) 1-11/32"
Overall Reach (Decimal Inch) 1.3430"
Finish/Coating TiB2
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Single or Double End Single
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Center Cutting (Yes/No) Yes
Tapered Reach (Decimal Inch) 1.3430"
Tapered Reach (Inch) 1-11/32"
Neck Angle 1.5 Degrees
LOC Multiple 0.8x
Type II
Metric (Yes/No) No
