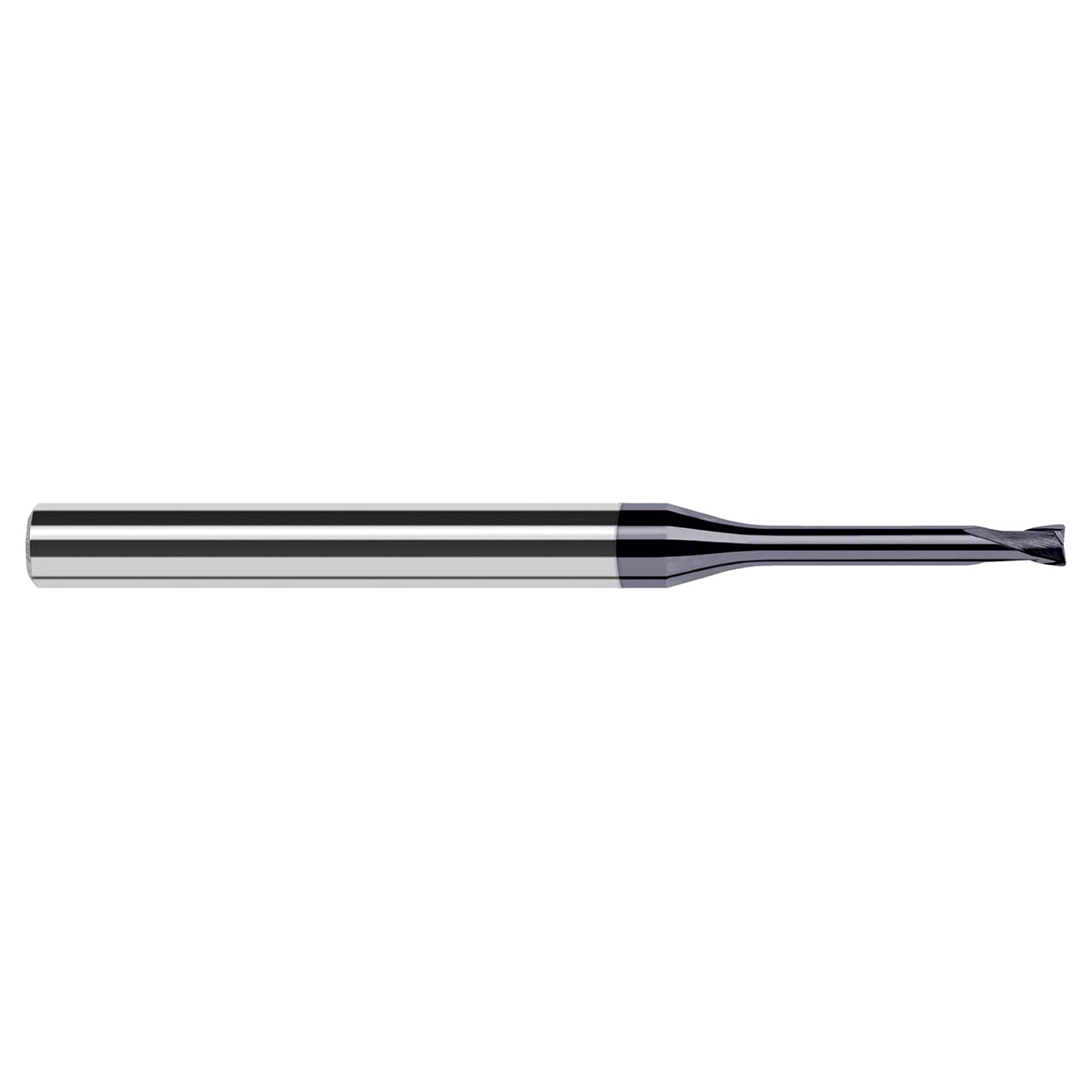

Harvey Tool offering of End Mills for Hardened Steels - Finishers - Corner Radius includes tooling ground from a select carbide grade for improved edge retention.
- Geometry includes stub flute, large rigid core diameter and eccentric relief
- Increased shank diameter to maintain strength and stiffness
- Select carbide grade for improved edge retention
- h6 shank tolerance for high precision tool holders
- CNC ground in the USA
Product Specifications
| Tool Number | 996416-C6 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.2450" |
| Length of Cut (Inch) | 0.2000" |
| Overall Reach (Inch) | 1.2500" (1-1/4) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Corner Radius (Inch) | 0.0150" (1/64) |
| Flutes | 4 |
| LOC Multiple | 0.8x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating | C6 |
