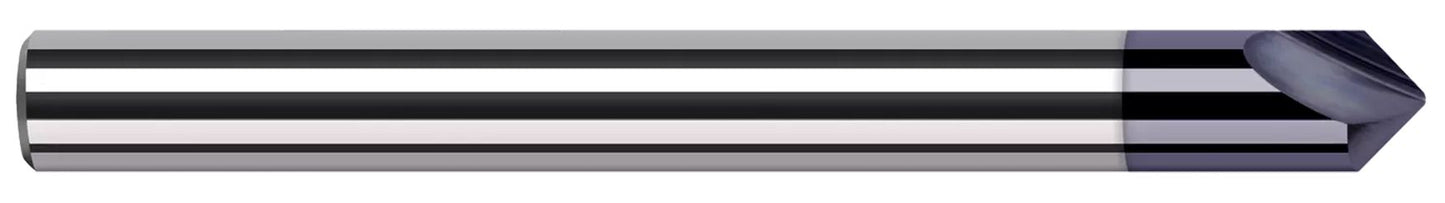

Engraving Cutters - Tip Radius - 2 Flute - For Hardened Steels is a fully stocked, solid carbide tool that features a strong 2 flute design for engraving hardened steels 46-68Rc, and an eccentric relief to increase durability and tool life.
- Strong 2 flute design for engraving hardened steels 46-68Rc
- Eccentric relief increases durability and tool life
- Tip radius end diameter and shallow flute design for improved cutting and strength
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Length of Cut (Inch) | 0.1428" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Radius | 0.0050" |
| Number of Flutes | 2 |
| Angle per Side | 22.5 |
| Included Angle | 45 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
