Harvey Tool

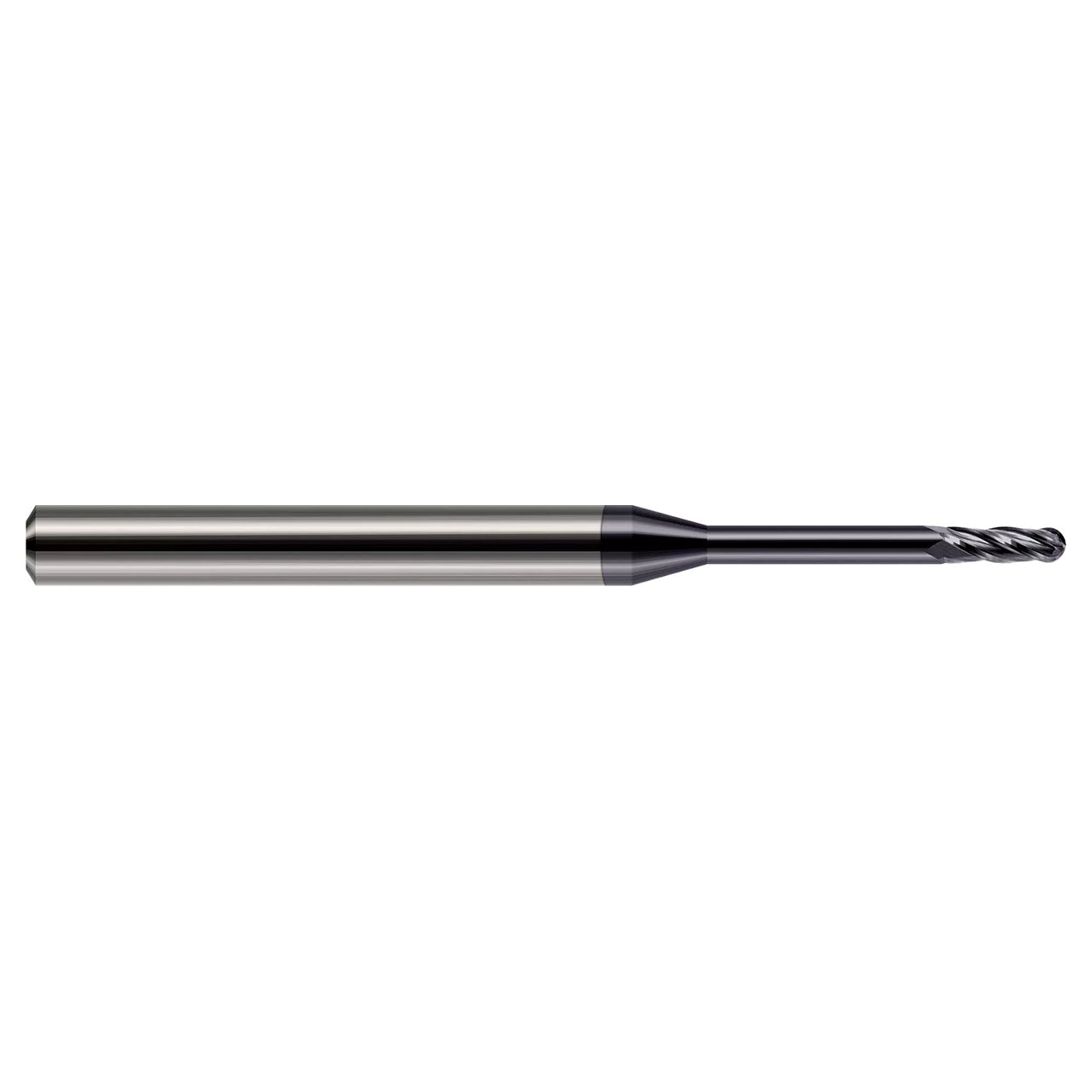

Harvey Tool 982878 | 0.0780" (5/64) Diameter x 0.1250" (1/8) Shank x 0.2340" (15/64) LOC x 1.5000" (1-1/2) OAL x 4 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

Harvey Tool 982878 | 0.0780" (5/64) Diameter x 0.1250" (1/8) Shank x 0.2340" (15/64) LOC x 1.5000" (1-1/2) OAL x 4 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

SKU: 25211745

$51.70 USD
$51.70 USD $51.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles

The reduced neck diameter featured in this line of Harvey Tool Miniature End Mills - Ball - Long Reach, Standard Flute product helps to avoid heeling.

  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 982878
Cutter Diameter (Inch) 0.0780" (5/64)
Neck Diameter (Inch) 0.0765"
Length of Cut (Inch) 0.2340" (15/64)
Neck Length (Inch) 0.1720" (11/64)
Overall Reach (Inch) 0.4060" (13/32)
Overall Length (Inch) 1.5000" (1-1/2)
Flutes 4
LOC Multiple 3x
Reach Multiple 5x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
