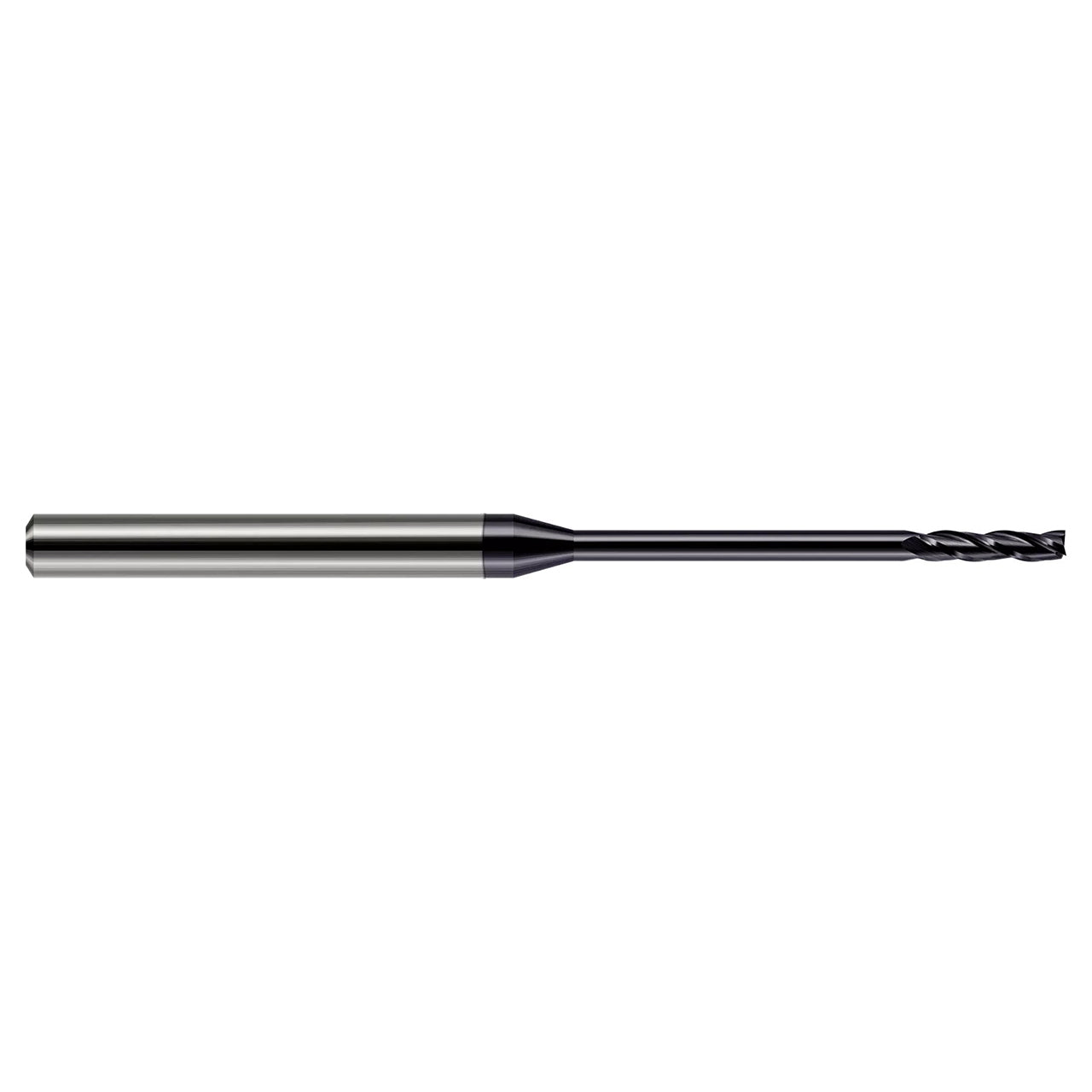

Optimized for deep cavity and deep pocket milling applications, miniature end mills - square - long reach, long flute feature a reduced neck diameter to avoid heeling, center cutting geometry, and solid carbide construction.
Features- Long length design for deep cavities
- Long flutes for deep pocket milling
- Length of cut is ≥ 5x diameter
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 956370-C3 |
| Cutter Diameter (Inch) | 0.0700" |
| Neck Diameter (Inch) | 0.0685" |
| Length of Cut (Inch) | 0.3750" (3/8) |
| Overall Reach (Inch) | 0.7000" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Number of Flutes | 3 |
| LOC Multiple | (5x) |
| Reach Multiple | (10x) |
| Coating | C3 |
| Profile | Square |
