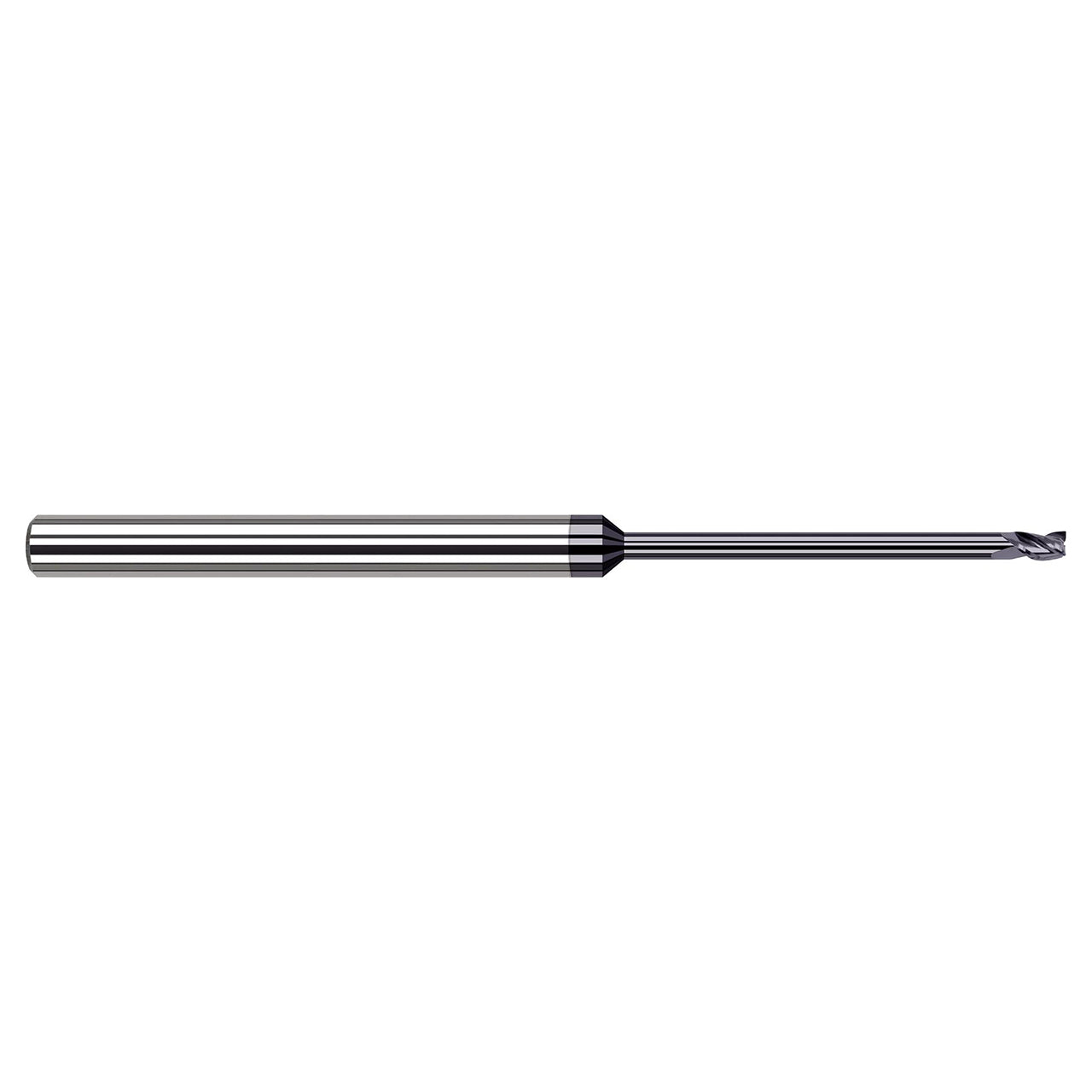

Harvey Tool 945540-C4 | 0.0400" Diameter x 0.1250" (1/8) Shank x 0.0600" LOC x 2.5000" (2-1/2) OAL x 3 Flutes Amorphous Diamond Coated Carbide Square End Mill

Harvey Tool 945540-C4 | 0.0400" Diameter x 0.1250" (1/8) Shank x 0.0600" LOC x 2.5000" (2-1/2) OAL x 3 Flutes Amorphous Diamond Coated Carbide Square End Mill

SKU: 25232765

$53.70 USD
$53.70 USD $53.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

12 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles

This solid carbide offering of Miniature End Mills - Square - Long Reach, Stub Flute is fully stocked in seventeen reach lengths.

  • Long length design for deep cavities
  • Reduced neck diameter to avoid heeling
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 945540-C4
Cutter Diameter (Inch) 0.0400"
Neck Diameter (Inch) 0.0385"
Length of Cut (Inch) 0.0600"
Overall Reach (Inch) 0.1600"
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 1.5x
Reach Multiple 4x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C4
