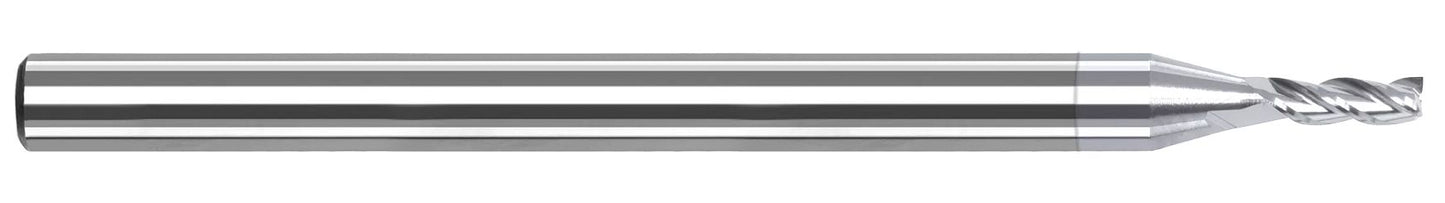

Optimized for aluminum and aluminum alloys with excellent performance in copper, brass, and bronze alloys, Harvey Tool's Variable Helix End Mills for Aluminum Alloys - Square reduces chatter and harmonics.
- Variable helix design (approx. 42 Degree) reduces chatter and harmonics, and increases material removal rates
- h6 shank tolerance for high precision tool holders
- 3 flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1562" (5/32) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 3 |
| LOC Multiple | 5x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | C4 |
