Harvey Tool

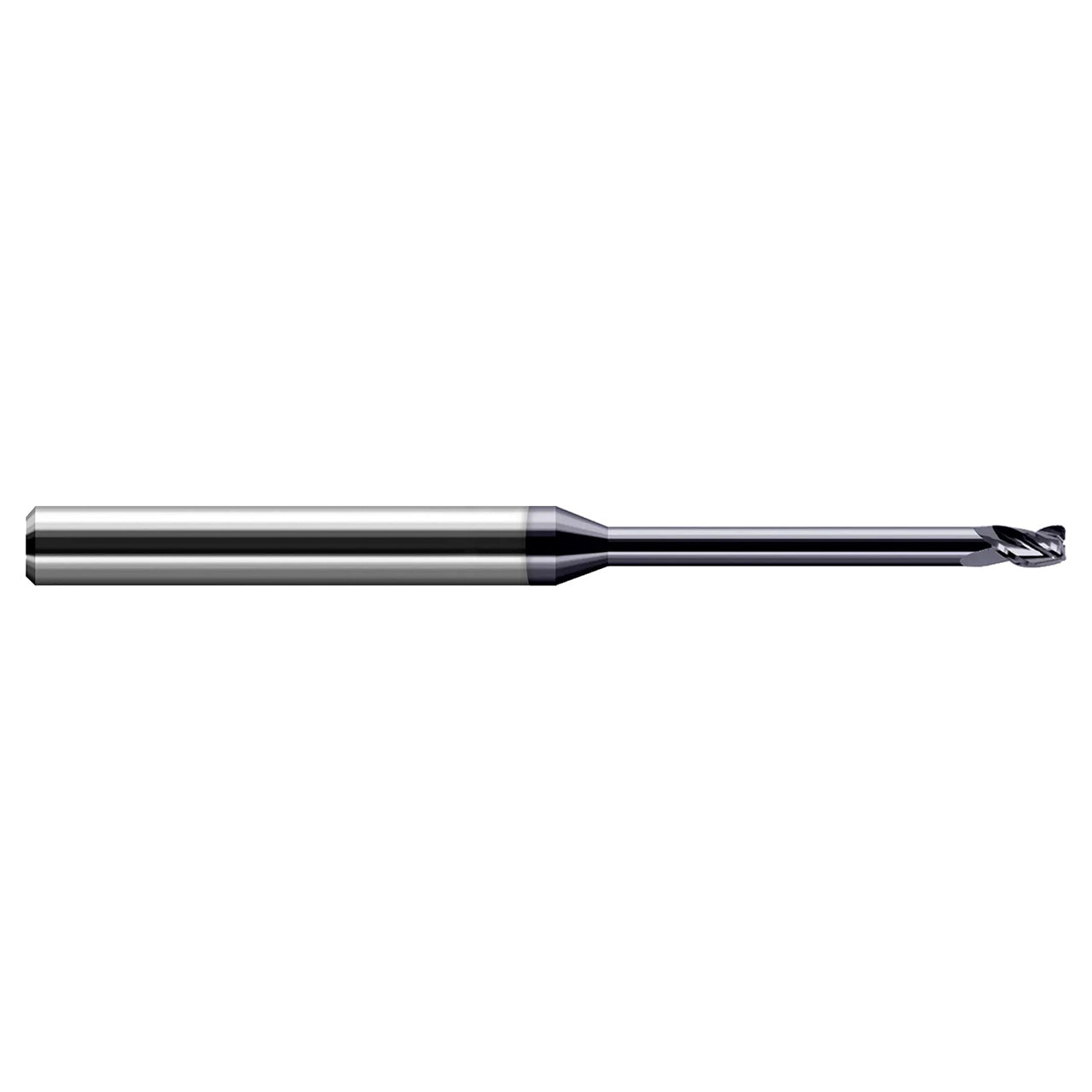

Harvey Tool 921510-C3 | 0.1562" (5/32) Cutter Diameter x 0.2340" (15/64) LOC x 1.5700" OAL x 0.0300" Corner Radius 3 Flute C3 Coated Corner Radius End Mill

Harvey Tool 921510-C3 | 0.1562" (5/32) Cutter Diameter x 0.2340" (15/64) LOC x 1.5700" OAL x 0.0300" Corner Radius 3 Flute C3 Coated Corner Radius End Mill

SKU: 25256993

$63.60 USD
$63.60 USD $63.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 18 Grams

Ver todos los detalles
Features
  • Long length design for deep cavities, up to 8 Inch overall length
  • Corner radius for improved strength
  • Length of cut = 1½ x diameter
  • 3 flutes
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number 921510-C3
Cutter Diameter (Inch) 0.1562" (5/32)
Neck Diameter (Inch) 0.1520"
Length of Cut (Inch) 0.2340" (15/64)
Overall Reach (Inch) 1.5700"
Overall Length (Inch) 3.0000" (3)
Corner Radius (Inch) 0.0300"
Shank Diameter (Inch) 0.1875" (3/16)
Number of Flutes 3
LOC Multiple (1.5x)
Reach Multiple (10x)
Coating C3
Profile Corner Radius
