Harvey Tool

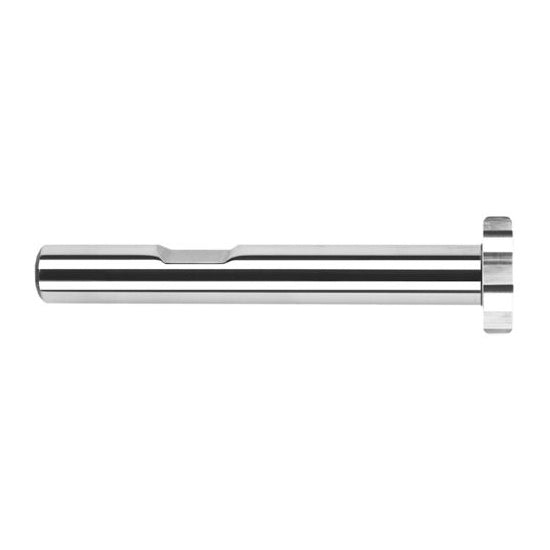

Harvey Tool 910060 | 1" Diameter x 3/16" Width x 1/2" Shank 0.0300" Corner Radus Uncoated Solid Carbide Straight Tooth Keyseat Cutter

Harvey Tool 910060 | 1" Diameter x 3/16" Width x 1/2" Shank 0.0300" Corner Radus Uncoated Solid Carbide Straight Tooth Keyseat Cutter

SKU: 25111048

Precio habitual $155.60 USD
Precio habitual $155.60 USD Precio de oferta $155.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 748 Grams

26 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles
Product Specifications
Mill Diameter (Decimal Inch) 1.0000"
Mill Diameter (Inch) 1"
Cutter Width (Decimal Inch) 0.1870"
Cutter Width (Inch) 3/16"
Overall Length (Decimal Inch) 3.1870"
Overall Length (Inch) 3-3/16"
Radial Depth Of Cut (Decimal Inch) 0.2400"
Corner Radius (Decimal Inch) 0.0300"
Number of Flutes 12
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (Inch) 1/2"
Coating Uncoated
Top Corner Radius 0.03
