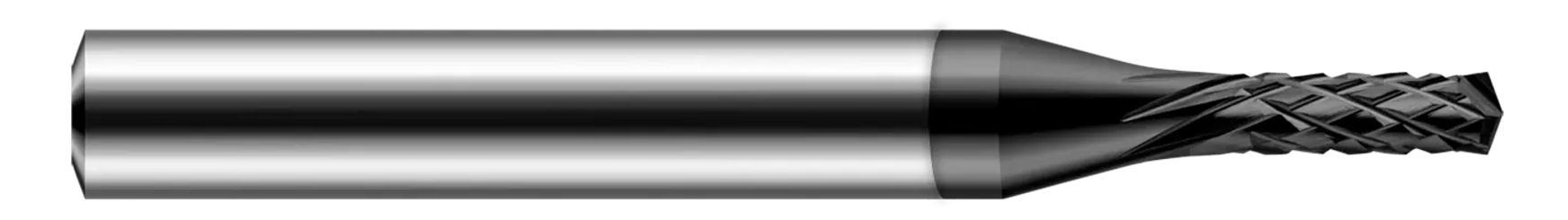

End Mills for Composites - Diamond Cut - Drill Mill Style is a fully stocked Harvey Tool product offering featuring tools with a 140 Degree point angle, allowing for efficient plunging through composite sheet metal. Browse from uncoated and Amorphous Diamond coated options.
- 140 Degree point angle allows for efficient plunging through composite sheet material
- Diamond cut style and high flute count allows for effective roughing and profiling in abrasive composites
- Ideally suited for Carbon and Glass Fiber composites and other composites with high fiber reinforcement
- Downcut geometry on OD
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Point Angle | 140 |
| Right Hand Teeth | 12 |
| Left Hand Teeth | 14 |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Coating/Finish | Uncoated |
