Harvey Tool

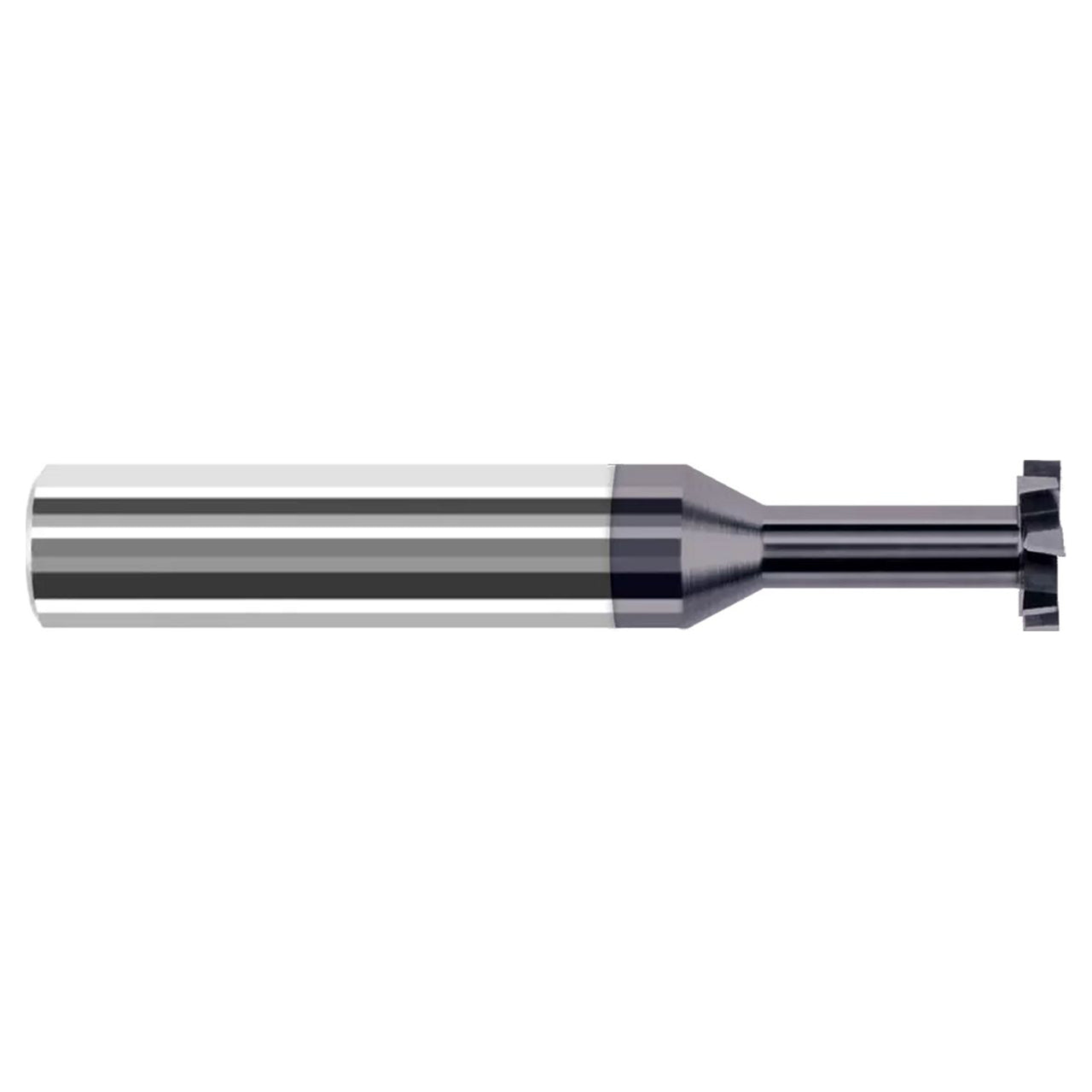

Harvey Tool 907031 | 0.1875" (3/16) Diameter x 0.0310" (1/32) Width 0.1875" (3/16) Shank Uncoated Carbide Staggered Tooth Keyseat Cutter

Harvey Tool 907031 | 0.1875" (3/16) Diameter x 0.0310" (1/32) Width 0.1875" (3/16) Shank Uncoated Carbide Staggered Tooth Keyseat Cutter

SKU: 25211665

$87.60 USD
$87.60 USD $87.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles
  • Relieved to allow cutting on both sides of head
  • Tool can be offset to increase width of groove
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 907031
Cutter Diameter (Inch) 0.1875" (3/16)
Neck Diameter (Inch) 0.0930" (3/32)
Cutter Width (Inch) 0.0310" (1/32)
Neck Length (Inch) 0.2810" (9/32)
Overall Length (Inch) 2.0000" (2)
Radial Depth of Cut (Inch) 0.0370"
Flutes 6
Reach Multiple 1.5x
Type I
Shank Diameter (Inch) 0.1875" (3/16)
Coating Uncoated
