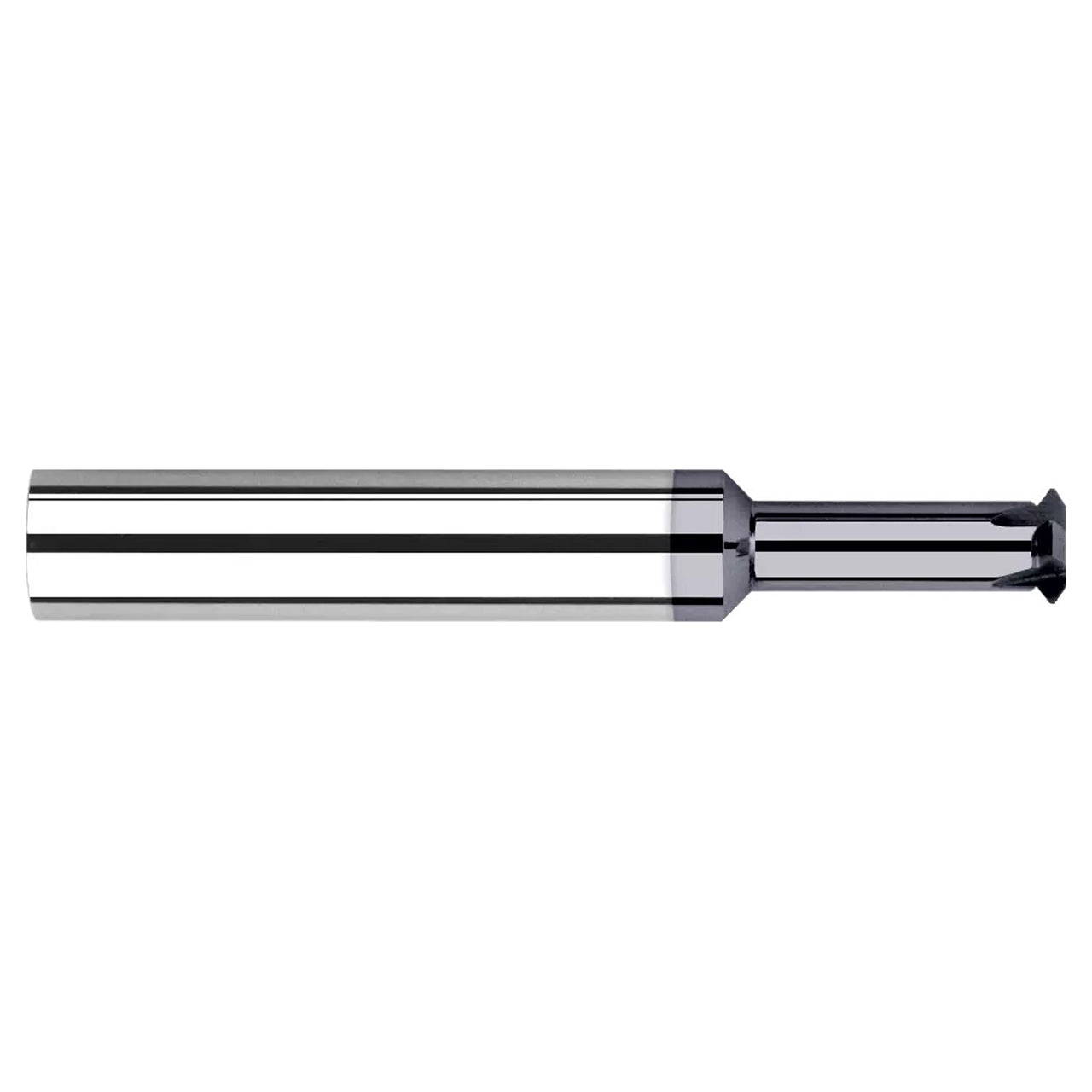

This single thread form tool is designed to mill common pitch sizes. The top of its included angle is ground to a flat for increased wear resistance, ensuring that your tool life is maximized.
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Tip of included angle ground to a flat for increased wear resistance
- Large rigid core diameter and eccentric relief for improved strength
- Single thread form designed to mill common pitch sizes
- Select carbide grade for improved edge retention
- Mills left hand and right hand threads
- CNC ground in the USA
Product Specifications
| Tool Number | 898960-C6 |
| Cutter Diameter (Inch) | 0.3000" |
| Neck Diameter (Inch) | 0.2270" |
| Length of Cut (Inch) | 0.0450" |
| Overall Length (Inch) | 3.0000" (3) |
| Max Depth of Thread (Inch) | 1.7500" (1-3/4) |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flutes | 5 |
| Size | 3/8 |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating | C6 |
