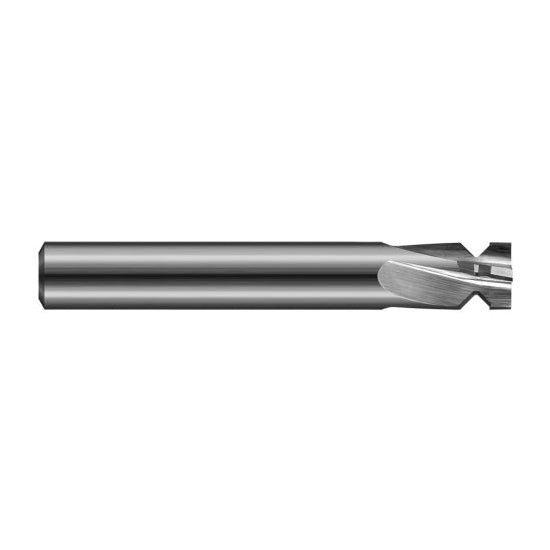

Harvey Tool 875640 | 90 Degree Included Angle 5/8" Diameter x Cutter Width x 5/8" Shank x 3-1/2" OAL Uncoated Coated Solid Carbide Picatinny Form Cutter

Harvey Tool 875640 | 90 Degree Included Angle 5/8" Diameter x Cutter Width x 5/8" Shank x 3-1/2" OAL Uncoated Coated Solid Carbide Picatinny Form Cutter

SKU: 25119642

Precio habitual $191.70 USD
Precio habitual $191.70 USD Precio de oferta $191.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 254 Grams

Ver todos los detalles
Product Specifications
Mill Diameter (Decimal Inch) 0.6250"
Mill Diameter (Inch) 5/8"
Minor Diameter (Decimal Inch) 0.4070"
Length Of Cut (Decimal Inch) 0.3770"
Overall Length (Decimal Inch) 3.5000"
Overall Length (Inch) 3-1/2"
Min Opening Width (Decimal Inch)
0.0210" End Length (Decimal Inch) 0.1600"
Radius (Decimal Inch) 0.0050"
Angle Per Side 45 Degree
Included Angle 90 Degree
Number of Flutes 4
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (Inch) 5/8"
Metric No
Coating Uncoated
