Harvey Tool

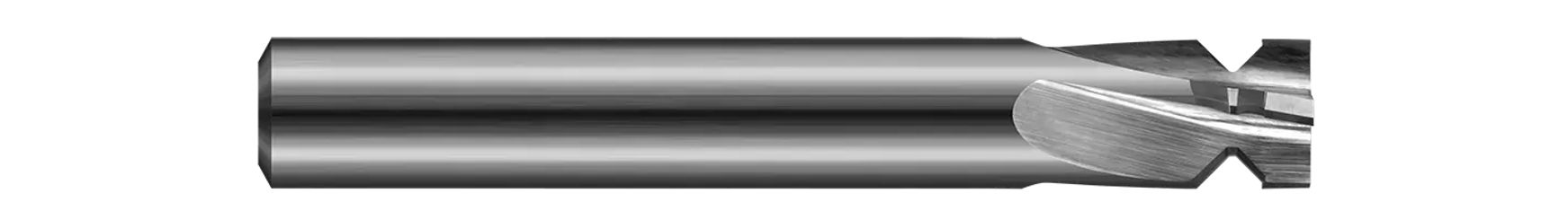

Harvey Tool 875632-C8 | 1/2" Diameter x 1/2" Shank x 3" OAL 90 Degree Included Angle TiB2 Coated Carbide Picatinny Attachment Cutter

Harvey Tool 875632-C8 | 1/2" Diameter x 1/2" Shank x 3" OAL 90 Degree Included Angle TiB2 Coated Carbide Picatinny Attachment Cutter

SKU: 25175184

$171.40 USD
$171.40 USD $171.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 122 Grams

Ver todos los detalles

Picatinny Rail Form Cutters are designed to MIL-STD-1913 specifications. Mill the entire Picatinny Rail in a single pass without tool changes, cutting on entirety of the concave form and OD flat at the tool's end.

  • Designed to the MIL-STD-1913 specifications
  • Mill the entire Picatinny Rail in a single pass without tool changes
  • Cutting on the entirety of concave form and OD flat at end
  • 4 helical flutes for better cutting action
  • .005" max radii for all internal corners
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.5000" (1/2)
Minor Diameter (Inch) 0.2820"
Length of Cut (Inch) 0.3770"
Overall Length (Inch) 3.0000" (3)
Min Opening Width (Inch) 0.0210"
End Length (Inch) 0.1600"
Radius 0.0050"
Number of Flutes 4
Angle per Side 45
Included Angle 90
Type I
Shank Diameter (Inch) 0.5000" (1/2)
Coating/Finish C8
