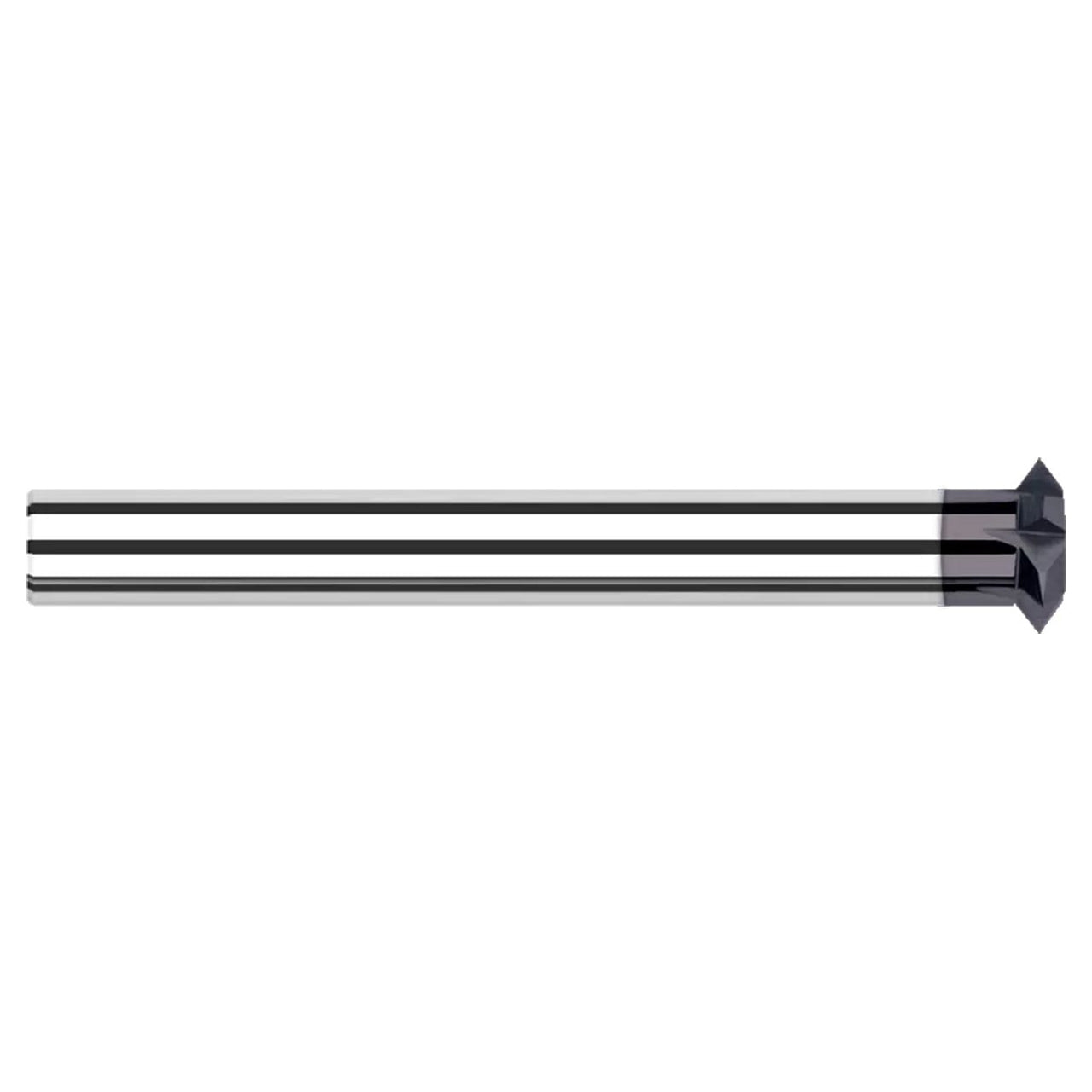

Ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part, Double Angle Shank Cutters - Pointed - Reduced Shank.
- Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
- Reduced straight shank allows any chucking depth
- Solid carbide head brazed onto steel shank
- Tip of included angle ground to a point
- CNC ground in the USA
Product Specifications
| Tool Number | 875520-C3 |
| Cutter Diameter (Inch) | 1.2500" (1-1/4) |
| Cutter Width (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 4.5000" (4-1/2) |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 8 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Coating | C3 |
