Harvey Tool

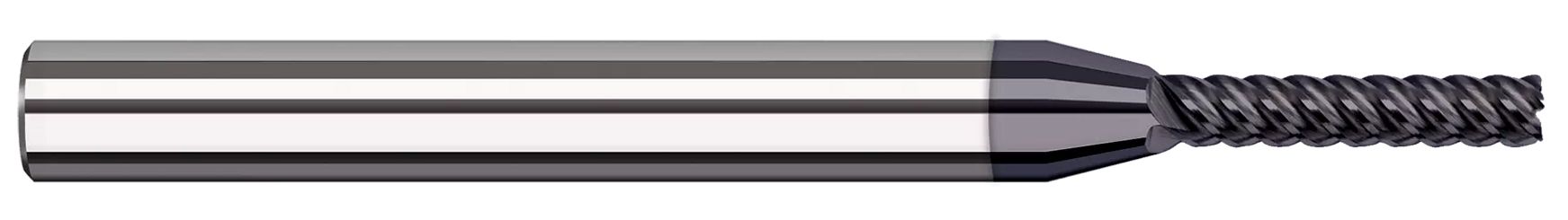

Harvey Tool 874708-C6 | 1/8" Diameter x 1/8" Shank x 5/8" LOC x 2-1/2" OAL 0.0050" Radius 7 Flute AlTiN Nano Coated Carbide Corner Radius End Mill

Harvey Tool 874708-C6 | 1/8" Diameter x 1/8" Shank x 5/8" LOC x 2-1/2" OAL 0.0050" Radius 7 Flute AlTiN Nano Coated Carbide Corner Radius End Mill

SKU: 25185924

$41.50 USD
$41.50 USD $41.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.

  • Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Suitable for steels up to 45Rc
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.1250" (1/8)
Length of Cut (Inch) 0.6250" (5/8)
Overall Length (Inch) 2.5000" (2-1/2)
Number of Flutes 7
Corner Radius 0.0050"
LOC Multiple 5x
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish C6
