Harvey Tool

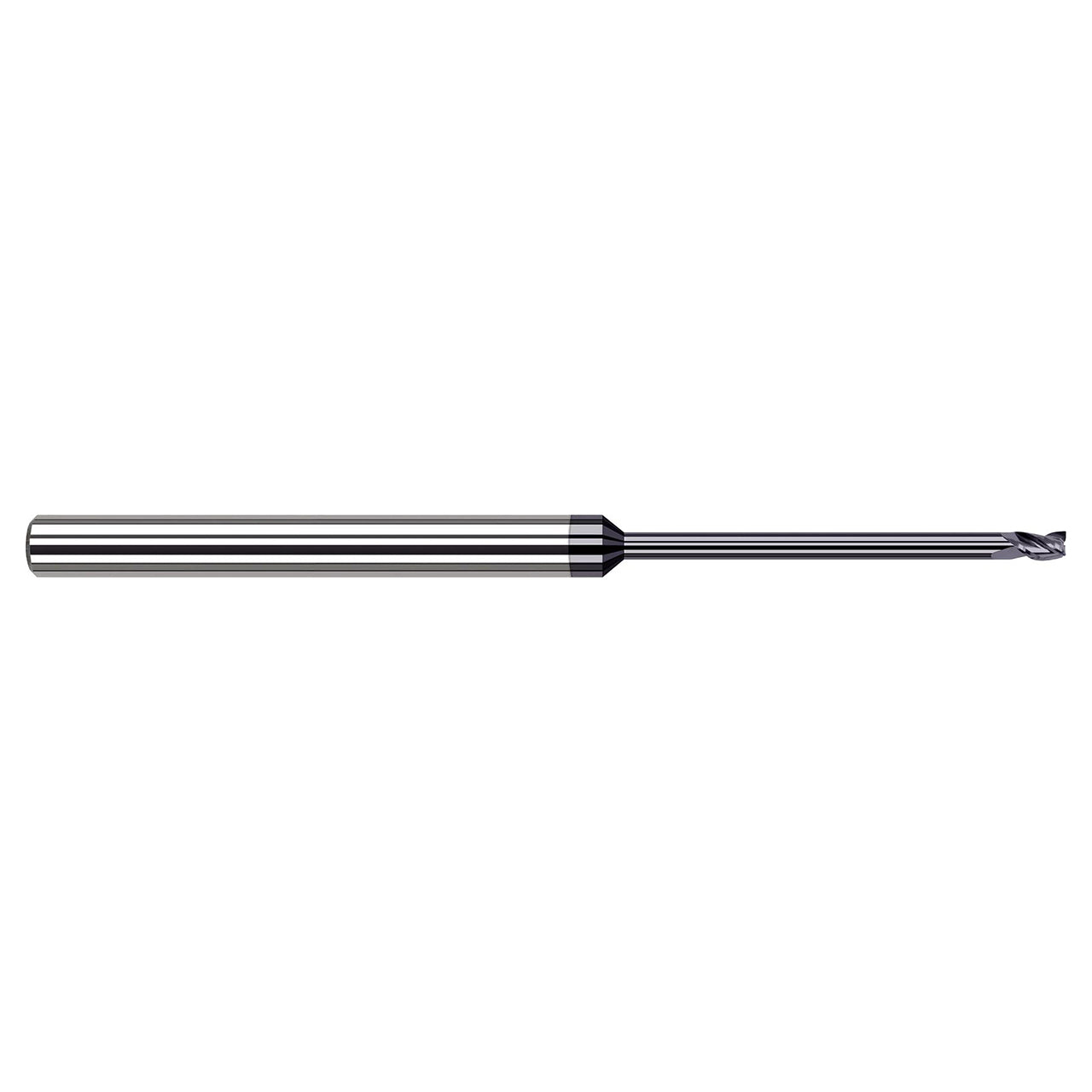

Harvey Tool 874120 | 0.0200" (0.5 mm) Diameter x 0.1250" (1/8) Shank x 0.0300" LOC x 2.5000" (2-1/2) OAL x 4 Flutes Uncoated Carbide Square End Mill

Harvey Tool 874120 | 0.0200" (0.5 mm) Diameter x 0.1250" (1/8) Shank x 0.0300" LOC x 2.5000" (2-1/2) OAL x 4 Flutes Uncoated Carbide Square End Mill

SKU: 25211616

$41.50 USD
$41.50 USD $41.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 14 Grams

Bajas existencias: quedan 10

Free Shipping on Orders Over $75

Ver todos los detalles

This solid carbide offering of Miniature End Mills - Square - Long Reach, Stub Flute is fully stocked in seventeen reach lengths.

  • Reduced neck diameter to avoid heeling
  • Long length design for deep cavities
  • Stub flutes for maximum rigidity
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 874120
Cutter Diameter (Inch) 0.0200" (.5 mm)
Neck Diameter (Inch) 0.0192"
Length of Cut (Inch) 0.0300"
Overall Reach (Inch) 0.1600"
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 4
LOC Multiple 1.5x
Reach Multiple 8x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
