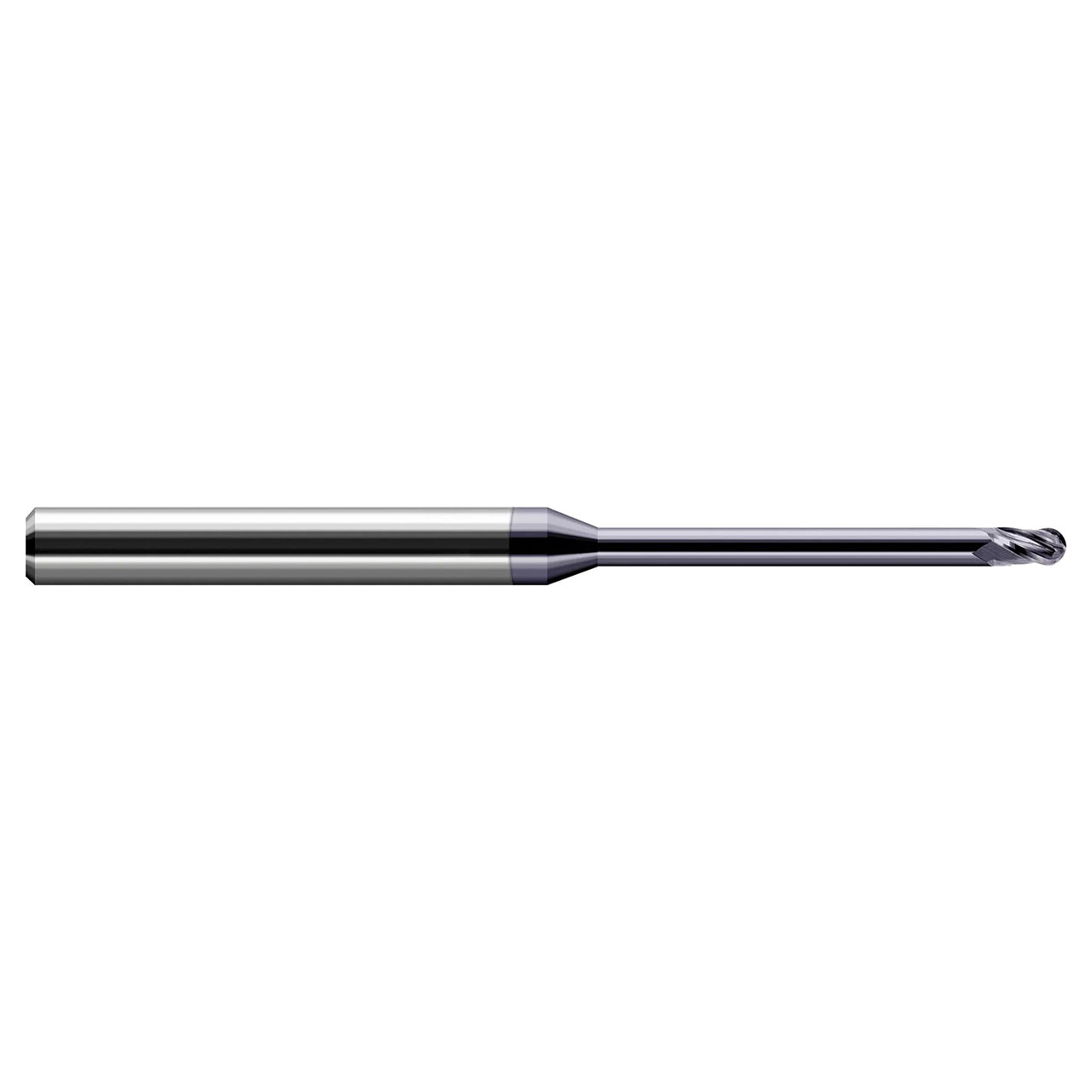

The stub flutes on this Miniature End Mills - Ball - Long Reach, Stub Flute collection of Harvey Tool end mills provides maximum rigidity, while its reduced neck diameter helps to avoid heeling during machining.
- Long length design for deep cavities
- Stub flutes for maximum rigidity
- CNC ground in the USA
- Center cutting
- Solid carbide
Product Specifications
| Tool Number | 868239 |
| Cutter Diameter (Inch) | 0.0390" (1 mm) |
| Neck Diameter (Inch) | 0.0380" |
| Length of Cut (Inch) | 0.0590" |
| Overall Reach (Inch) | 0.2810" (9/32) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Flutes | 3 |
| LOC Multiple | 1.5x |
| Reach Multiple | 7x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating | Uncoated |
