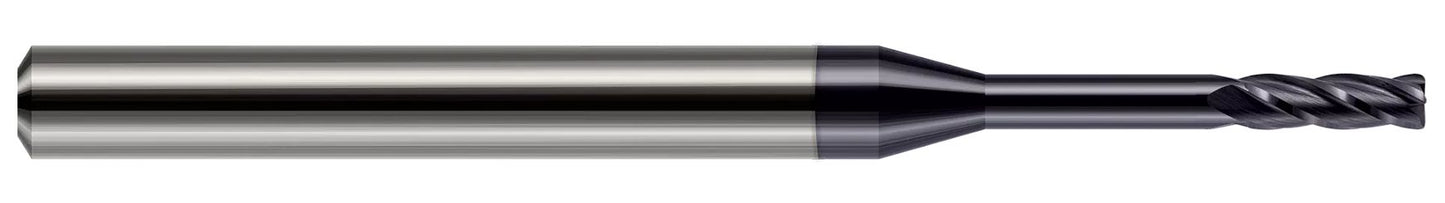

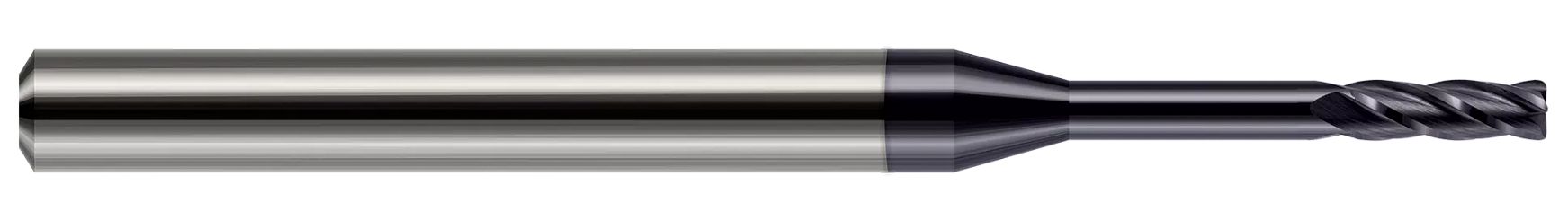

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.
- Corner radius for improved strength
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0390" (1 mm) |
| Neck Diameter (Inch) | 0.0380" |
| Length of Cut (Inch) | 0.1170" |
| Overall Reach (Inch) | 0.3250" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 4 |
| Corner Radius | 0.0050" |
| LOC Multiple | 3x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
