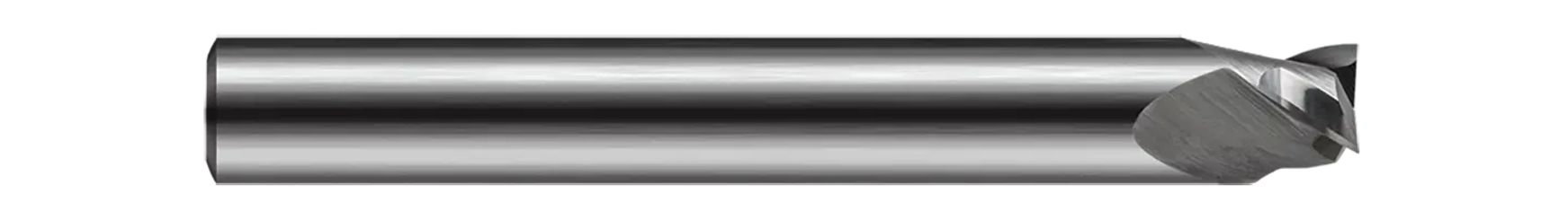

Harvey Tool's Picatinny Form Cutters - Picatinny Recoil Groove End Mills are optimized for the grooves across the Picatinny Rail. Browse from fully stocked, solid carbide options in sharp corner, .005", or .010" corner radius profiles.
- Optimized for the grooves across the Picatinny Rail
- Diameter allows for a single pass to create the groove
- Stub flute length for improved strength
- Cutting on transition to allow for slight edge break at top of groove
- High helix and optimized geometry for improved performance
- 3 flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2100" |
| Length of Cut (Inch) | 0.1180" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| Corner Radius | 0.0100" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C8 |
