Harvey Tool

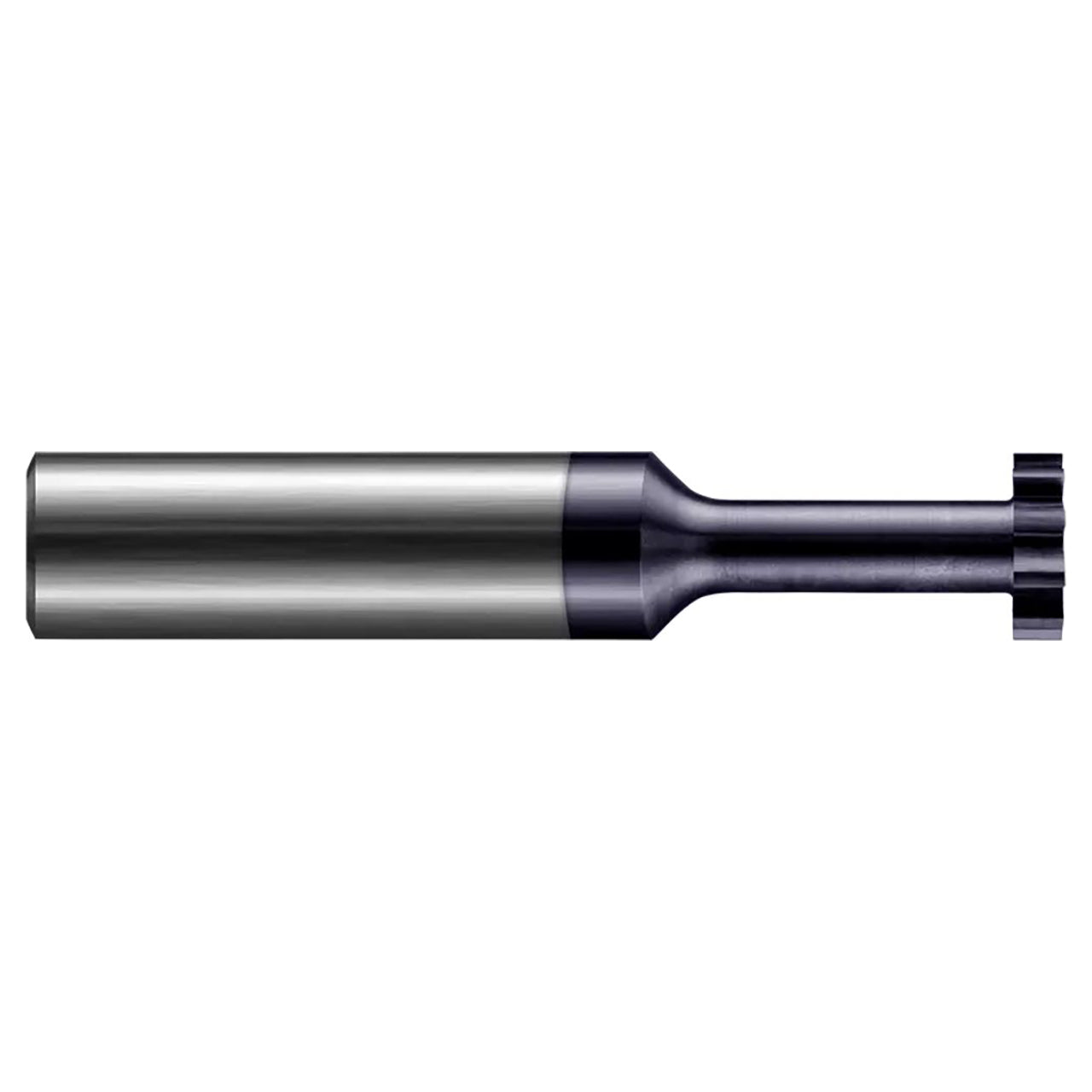

Harvey Tool 855610-C6 | 0.3125" (5/16) Diameter x 0.0310" (1/32) Width 0.3125" (5/16) Shank AlTiN Nano Coated Carbide Hardened Steels Keyseat Cutter

Harvey Tool 855610-C6 | 0.3125" (5/16) Diameter x 0.0310" (1/32) Width 0.3125" (5/16) Shank AlTiN Nano Coated Carbide Hardened Steels Keyseat Cutter

SKU: 25211581

$105.30 USD
$105.30 USD $105.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 45 Grams

Ver todos los detalles
  • Both sides of cutter are dished for clearance
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 855610-C6
Cutter Diameter (Inch) 0.3125" (5/16)
Neck Diameter (Inch) 0.1560" (5/32)
Cutter Width (Inch) 0.0310" (1/32)
Neck Length (Inch) 0.4680" (15/32)
Overall Length (Inch) 2.5000" (2-1/2)
Radial Depth of Cut (Inch) 0.0630"
Flutes 8
Reach Multiple 1.5x
Type I
Shank Diameter (Inch) 0.3125" (5/16)
Coating C6
