Harvey Tool

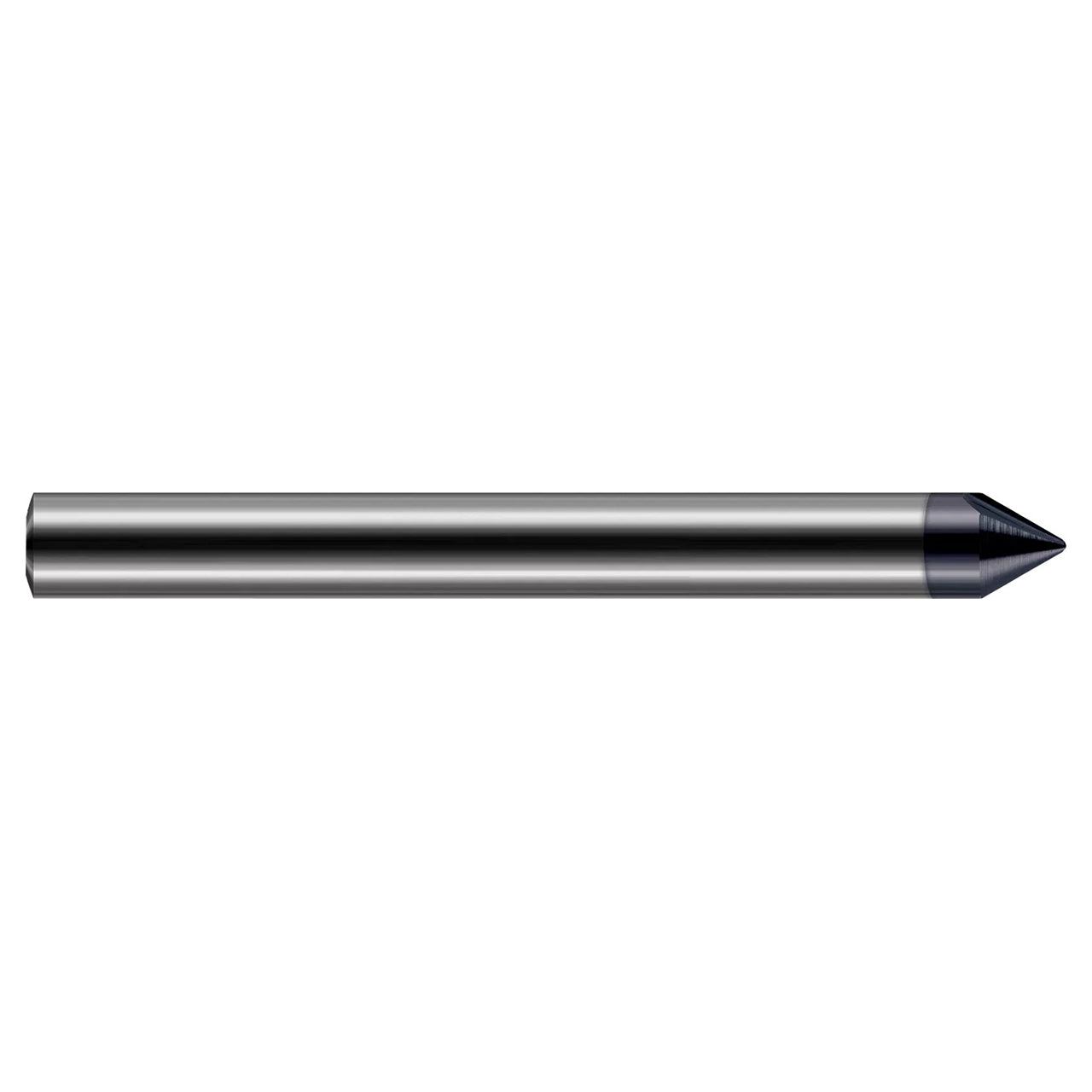

Harvey Tool 849012-C6 | 60 Degree x 0.1470" LOC x 0.1875" (3/16) Shank x AlTiN Nano Coated Carbide Tip Radius Engraving Cutter

Harvey Tool 849012-C6 | 60 Degree x 0.1470" LOC x 0.1875" (3/16) Shank x AlTiN Nano Coated Carbide Tip Radius Engraving Cutter

SKU: 25211573

$40.40 USD
$40.40 USD $40.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Retiro disponible en Mexicali

Normalmente está listo en 24 horas

UPC:

Weight: 23 Grams

11 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles
  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number 849012-C6
Length of Cut (Inch) 0.1470"
Overall Length (Inch) 2.0000" (2)
Radius (Inch) 0.0150" (1/64)
Angle per Side 30
Included Angle 60
Flutes 2
Type II
Shank Diameter (Inch) 0.1875" (3/16)
Coating C6
