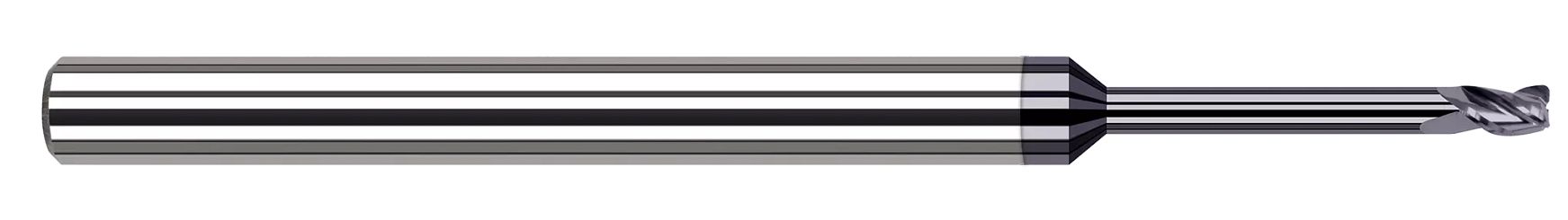

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.
- Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- h6 shank tolerance for high precision tool holders
- Suitable for steels up to 45Rc
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.1830" |
| Length of Cut (Inch) | 0.2850" |
| Overall Reach (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Corner Radius | 0.0200" |
| LOC Multiple | 1.5x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | C6 |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
