Harvey Tool

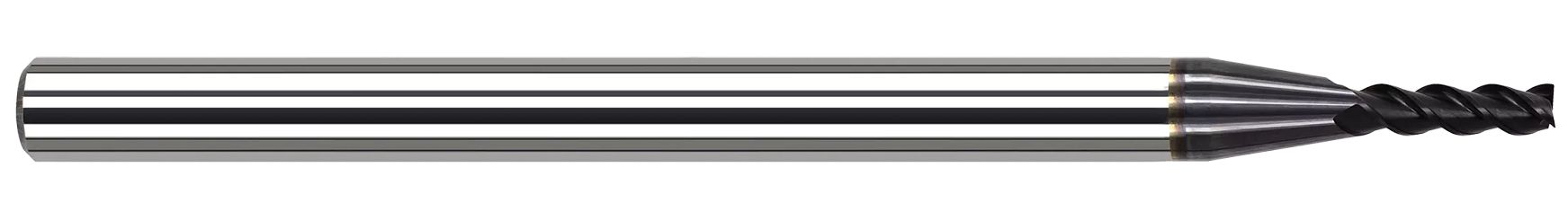

Harvey Tool 845416-C6 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2-1/2" OAL 0.0600" Radius 3 Flute AlTiN Nano Coated Carbide Corner Radius End Mill

Harvey Tool 845416-C6 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2-1/2" OAL 0.0600" Radius 3 Flute AlTiN Nano Coated Carbide Corner Radius End Mill

SKU: 25185968

$52.60 USD
$52.60 USD $52.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.

  • Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Suitable for steels up to 45Rc
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 0.3750" (3/8)
Overall Length (Inch) 2.5000" (2-1/2)
Number of Flutes 3
Corner Radius 0.0600"
LOC Multiple 1.5x
Shank Diameter (Inch) 0.2500" (1/4)
Coating/Finish C6
