Harvey Tool

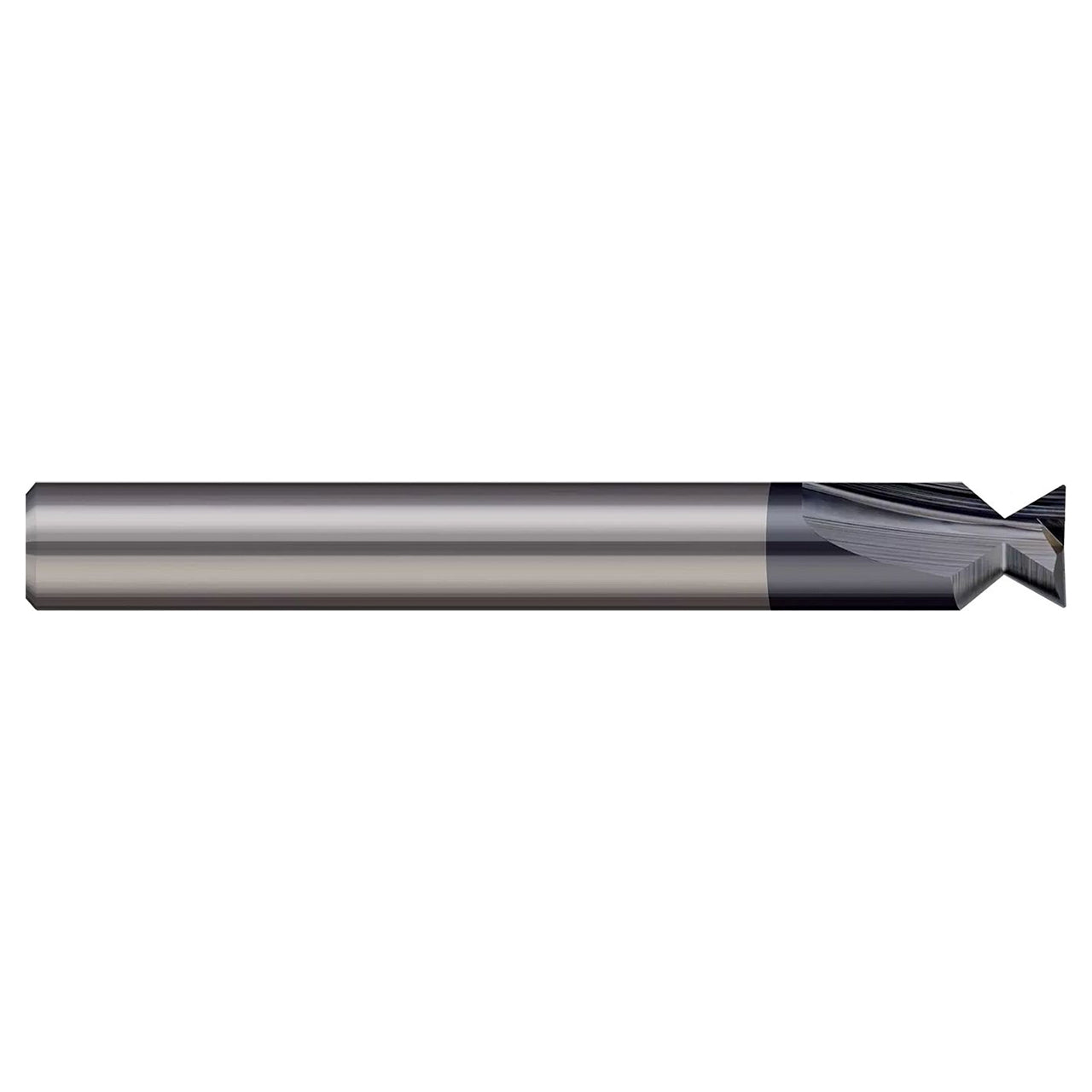

Harvey Tool 845124 | 0.3750" (3/8) Diameter x 0.1870" (3/16) LOC x 0.3750" (3/8) Shank x 60 Degree Uncoated Carbide Tip Radius Dovetail Cutters

Harvey Tool 845124 | 0.3750" (3/8) Diameter x 0.1870" (3/16) LOC x 0.3750" (3/8) Shank x 60 Degree Uncoated Carbide Tip Radius Dovetail Cutters

SKU: 25211555

$125.00 USD
$125.00 USD $125.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 227 Grams

Ver todos los detalles
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 845124
Cutter Diameter (Inch) 0.3750" (3/8)
Neck Diameter (Inch) 0.2030" (13/64)
Length of Cut (Inch) 0.1870" (3/16)
Overall Length (Inch) 2.5000" (2-1/2)
Corner Radius (Inch) 0.0300"
Angle per Side 30
Included Angle 60
Flutes 3
Shank Diameter (Inch) 0.3750" (3/8)
Coating Uncoated
