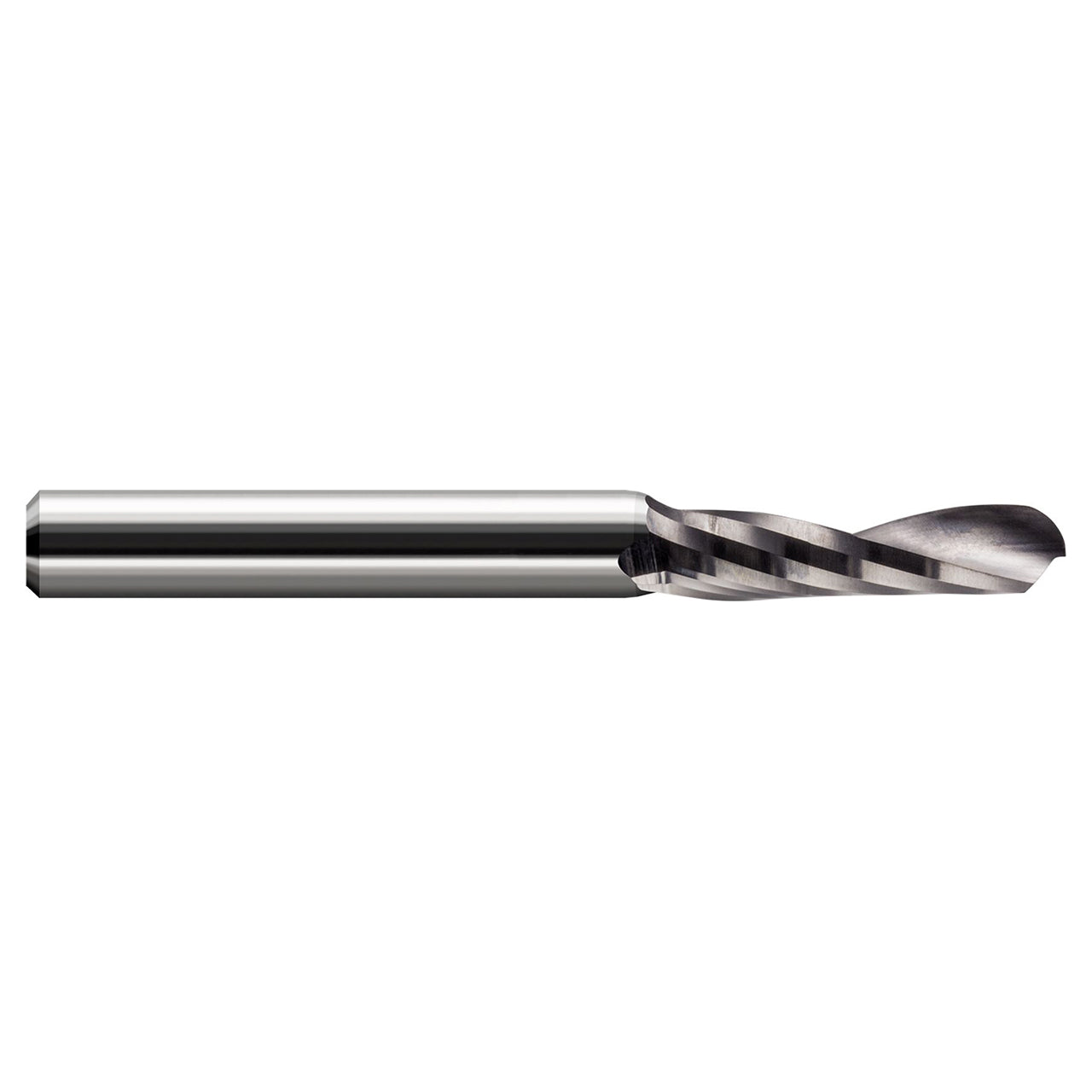

This solid carbide single flute ball upcut end mill for plastics has been designed by Harvey Tool with a large flute valley to create room for maximized chip evacuation, while producing an excellent finish on plastics containing fiber-reinforced materials.
Features- Design allows for maximum stock removal while maintaining excellent finish
- High rake, high relief design produces sharper edge for improved shearing action while transferring heat into the chip
- Large flute valley creates room for the chip and aids in chip evacuation
- Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
- High flute finish resists chip welding
- Will ramp or plunge if required
- Right hand spiral, right hand cut
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 842316 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 1.2500" (1-1/4) |
| Overall Length (Inch) | 3.0000" (3) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Number of Flutes | 1 |
| LOC Multiple | (5x) |
| Coating | Uncoated |
| Profile | Ball |
