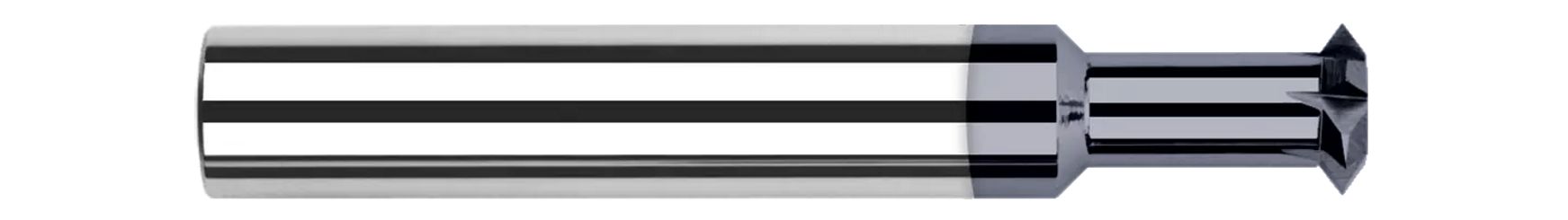

Harvey Tool 838832-C6 | 1/2" Diameter x 0.1880" Width x 1/2" Shank 90 Degree Included Angle AlTiN Nano Coated Carbide Pointed Double Angle Cutter

Harvey Tool 838832-C6 | 1/2" Diameter x 0.1880" Width x 1/2" Shank 90 Degree Included Angle AlTiN Nano Coated Carbide Pointed Double Angle Cutter

SKU: 25186354

$151.80 USD
$151.80 USD $151.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 118 Grams

Ver todos los detalles

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60 Degree angle allows it to be used for thread milling, as well.

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • 60 Degree angle can also be used for thread milling
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.5000" (1/2)
Neck Diameter (Inch) 0.3120" (5/16)
Cutter Width (Inch) 0.1880"
Neck Length (Inch) 0.5000" (1/2)
Overall Length (Inch) 3.0000" (3)
Number of Flutes 8
Angle per Side 45
Included Angle 90
Type I
Shank Diameter (Inch) 0.5000" (1/2)
Coating/Finish C6
