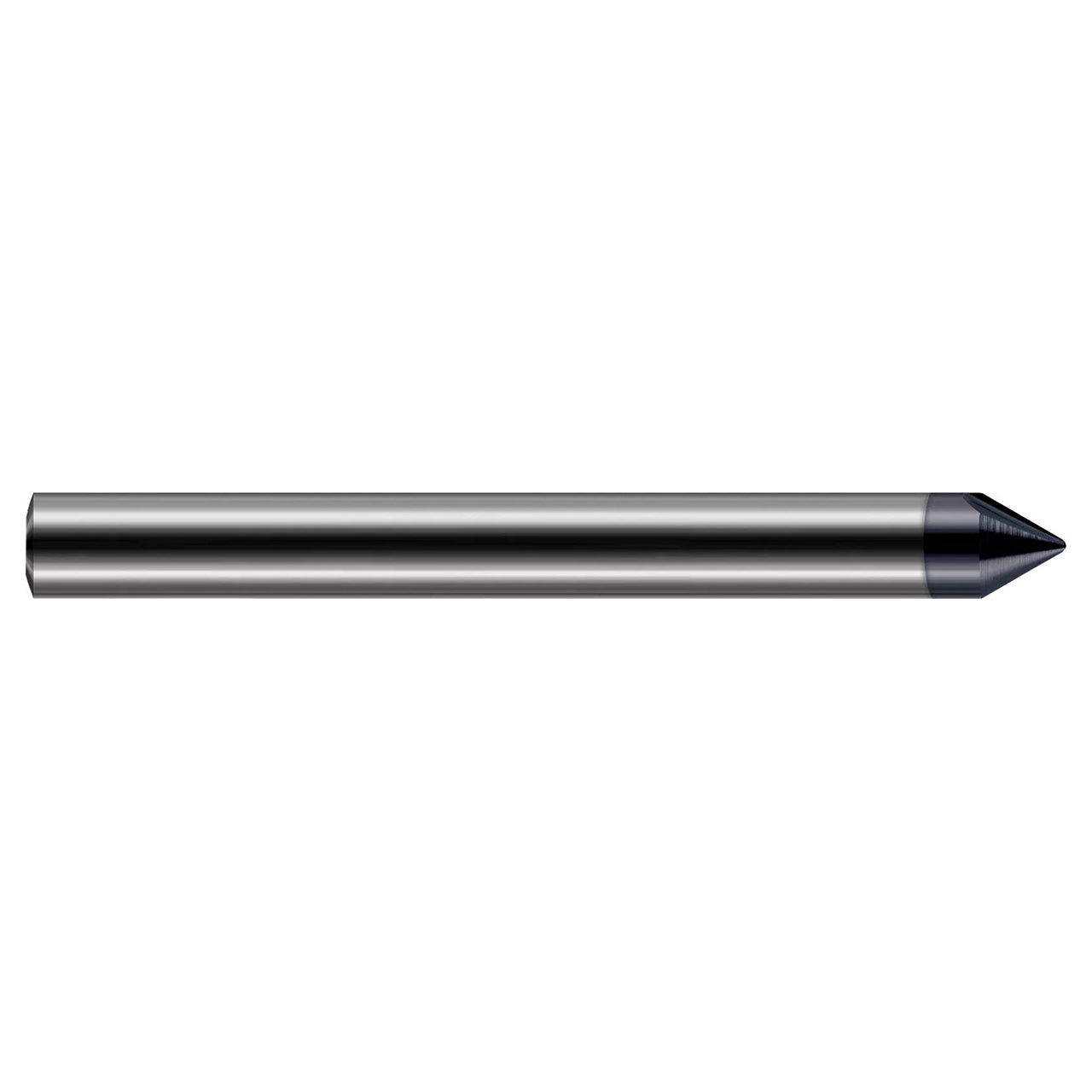

Harvey Tool 825716-C6 | 45 Degree x 0.2850" LOC x 0.2500" (1/4) Shank x AlTiN Nano Coated Carbide Tip Radius Engraving Cutter

Harvey Tool 825716-C6 | 45 Degree x 0.2850" LOC x 0.2500" (1/4) Shank x AlTiN Nano Coated Carbide Tip Radius Engraving Cutter

SKU: 25211496

Precio habitual $53.20 USD
Precio habitual $53.20 USD Precio de oferta $53.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Bajas existencias: quedan 10

Free Shipping on Orders Over $75

Ver todos los detalles
  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number 825716-C6
Length of Cut (Inch) 0.2850"
Overall Length (Inch) 2.0000" (2)
Radius (Inch) 0.0100"
Angle per Side 22.5
Included Angle 45
Flutes 2
Type II
Shank Diameter (Inch) 0.2500" (1/4)
Coating C6
