Harvey Tool

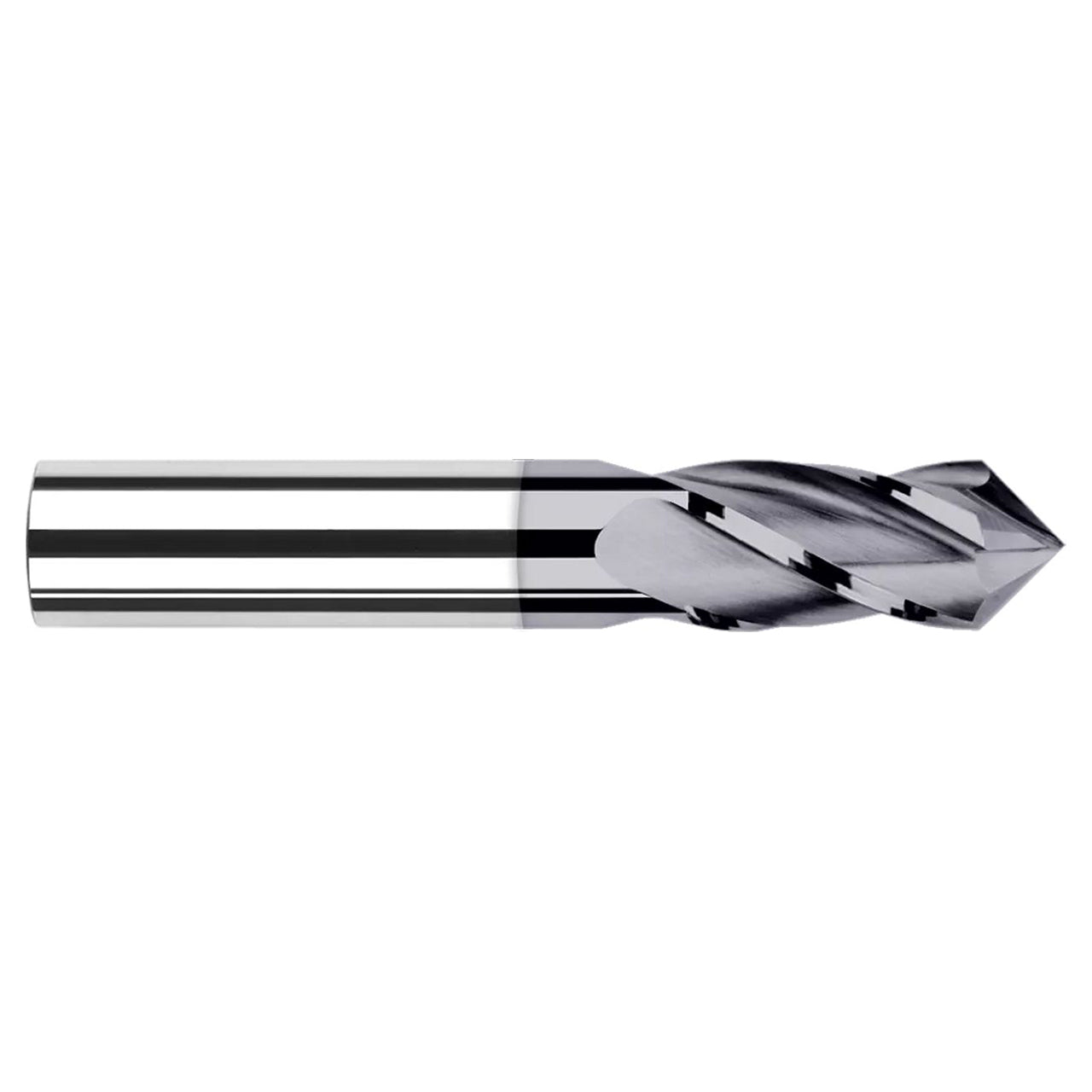

Harvey Tool 823993 | 0.0937" (3/32) Cutter Diameter x 0.5000" (1/2) LOC x 2.5000" (2-1/2) OAL 4 Flute 90 Degree Uncoated Drill Mill

Harvey Tool 823993 | 0.0937" (3/32) Cutter Diameter x 0.5000" (1/2) LOC x 2.5000" (2-1/2) OAL 4 Flute 90 Degree Uncoated Drill Mill

SKU: 25256675

$37.90 USD
$37.90 USD $37.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
Features
  • Designed for chamfering, milling, and some spotting applications
  • 4 flutes (two flutes to center, two flutes cut back)
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number 823993
Cutter Diameter (Inch) 0.0937" (3/32)
Length of Cut (Inch) 0.5000" (1/2)
Overall Length (Inch) 2.5000" (2-1/2)
Web Thickness (Inch) 0.0050"
Shank Diameter (Inch) 0.1250" (1/8)
Angle per Side 45 Degree
Included Angle 90 Degree
Number of Flutes 4
LOC Multiple (5x)
Coating Uncoated
Profile Mill Style
