Harvey Tool

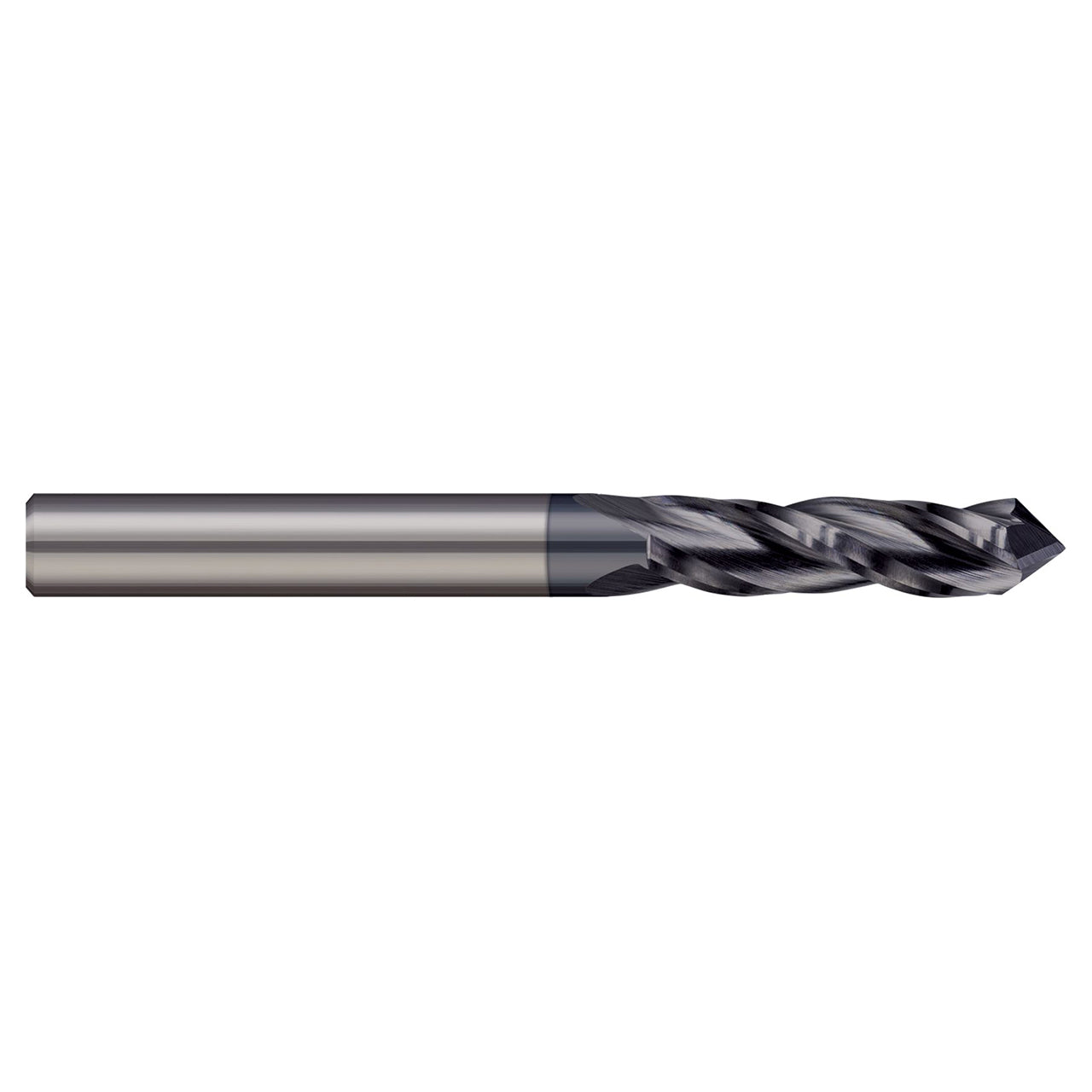

Harvey Tool 823820-C3 | 0.3125" (5/16) Diameter x 0.3125" (5/16) Shank x 2.5000" (2-1/2) OAL x 90 Degree Angle 3 Flutes AlTiN Coated Carbide Drill Mill

Harvey Tool 823820-C3 | 0.3125" (5/16) Diameter x 0.3125" (5/16) Shank x 2.5000" (2-1/2) OAL x 90 Degree Angle 3 Flutes AlTiN Coated Carbide Drill Mill

SKU: 25211494

$68.00 USD
$68.00 USD $68.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 41 Grams

Ver todos los detalles
  • Designed for Chamfering, Milling, and Some Spotting Applications
  • CNC ground in the USA
  • 3 flutes to center
  • Solid carbide

Product Specifications
Tool Number 823820-C3
Cutter Diameter (Inch) 0.3125" (5/16)
Length of Cut (Inch) 0.8120" (13/16)
Overall Length (Inch) 2.5000" (2-1/2)
Angle per Side 45
Included Angle 90
Flutes 3
LOC Multiple 3x
Shank Diameter (Inch) 0.3125" (5/16)
Coating C3
