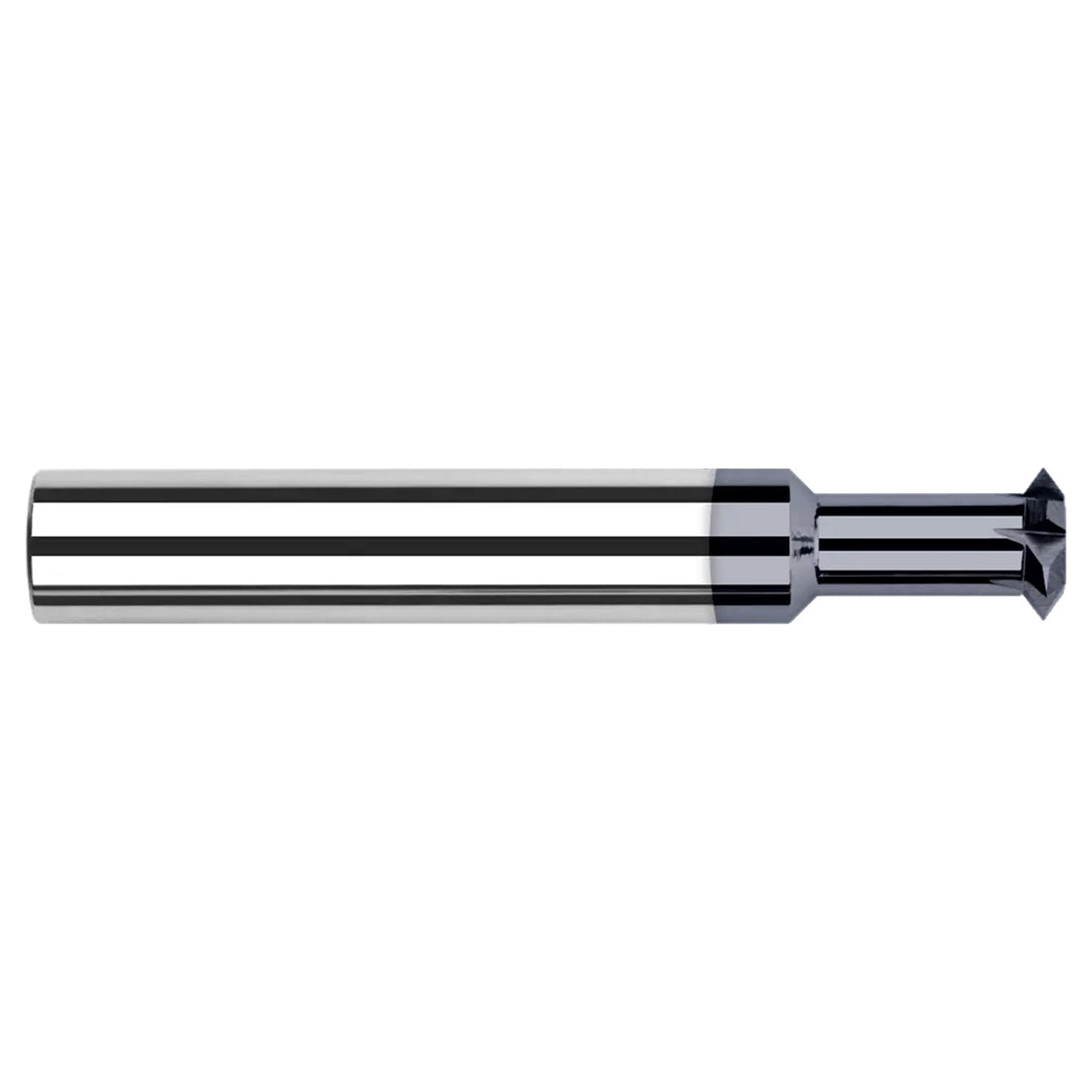

Double angle shank cutters - pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60 Degree angle allows it to be used for thread milling, as well.
Features- Reduced neck for long reach machining
- Tip of included angle ground to a point
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 82213M-C3 |
| Cutter Diameter (Inch) | 0.1180" |
| Cutter Diameter (mm) | 3mm |
| Neck Diameter (Inch) | 0.0590" |
| Neck Diameter (mm) | 1.5mm |
| Cutter Width (Inch) | 0.0590" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Neck Length (Inch) | 0.4380" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Included Angle | 90 Degree |
| Number of Flutes | 2 |
| Coating | C3 |
| Type | I |
| Profile | Pointed |
