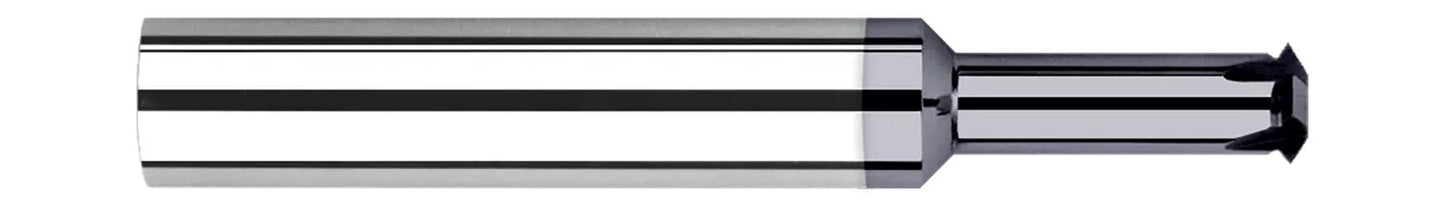

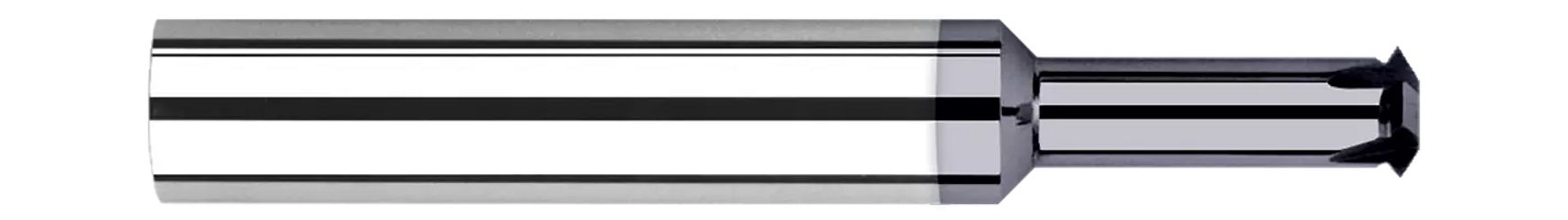

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.
- Single thread form can mill multiple pitches
- Cuts internal and external 60 Degree UN threads
- Mills right hand and left hand threads
- Tip of included angle ground to a point
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0980" (2.5 mm) |
| Neck Diameter (Inch) | 0.0500" |
| Length of Cut (Inch) | 0.0280" |
| Overall Length (Inch) | 2.0000" (2) |
| Max Depth of Thread (Inch) | 0.4370" (7/16) |
| Number of Flutes | 4 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Size | 6 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | Uncoated |
