Harvey Tool

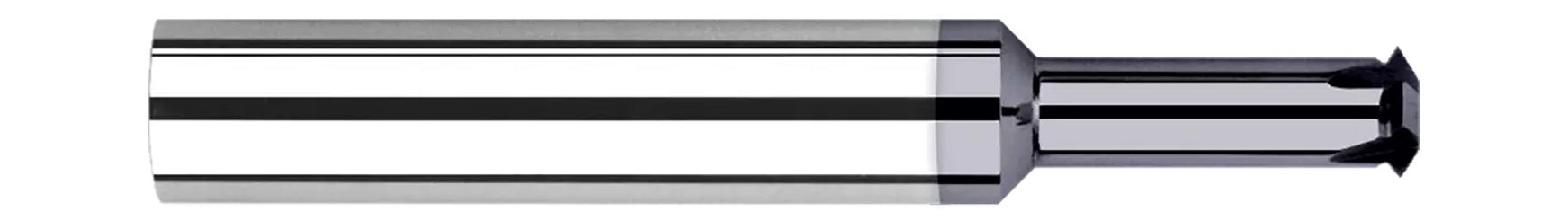

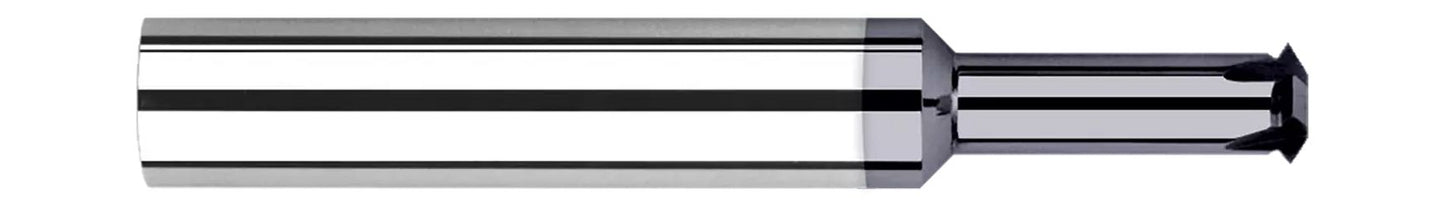

Harvey Tool 821406-C3 | 2 Thread 0.0640" Diameter x 1/64" LOC x 1/8" Shank 2 Flute 60 Degree Incuded Angle AlTiN Coated Carbide Single Profile Thread Mill

Harvey Tool 821406-C3 | 2 Thread 0.0640" Diameter x 1/64" LOC x 1/8" Shank 2 Flute 60 Degree Incuded Angle AlTiN Coated Carbide Single Profile Thread Mill

SKU: 25185929

$103.10 USD
$103.10 USD $103.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.

  • Single thread form can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.0640"
Neck Diameter (Inch) 0.0380"
Length of Cut (Inch) 0.0150" (1/64)
Overall Length (Inch) 1.5000" (1-1/2)
Max Depth of Thread (Inch) 0.2500" (1/4)
Number of Flutes 2
Angle per Side 30
Included Angle 60
Size 2
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish C3
