Harvey Tool

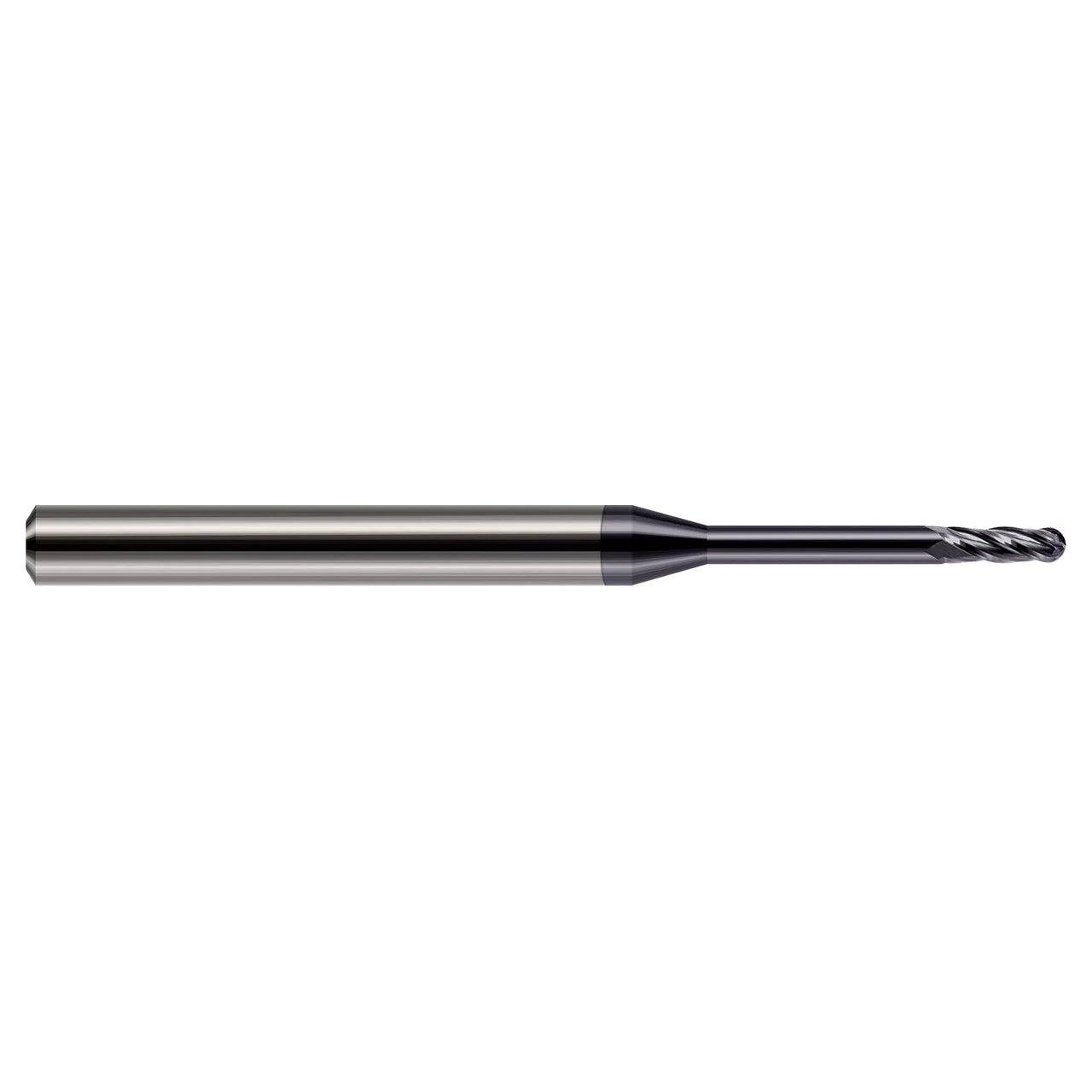

Harvey Tool 805720 | 0.0200" (0.5 mm) Diameter x 0.1250" (1/8) Shank x 0.0600" LOC x 1.5000" (1-1/2) OAL x 4 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

Harvey Tool 805720 | 0.0200" (0.5 mm) Diameter x 0.1250" (1/8) Shank x 0.0600" LOC x 1.5000" (1-1/2) OAL x 4 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

SKU: 25211469

$59.80 USD
$59.80 USD $59.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles

The reduced neck diameter featured in this line of Harvey Tool Miniature End Mills - Ball - Long Reach, Standard Flute product helps to avoid heeling.

  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 805720
Cutter Diameter (Inch) 0.0200" (.5 mm)
Neck Diameter (Inch) 0.0192"
Length of Cut (Inch) 0.0600"
Neck Length (Inch) 0.0600"
Overall Reach (Inch) 0.1200"
Overall Length (Inch) 1.5000" (1-1/2)
Flutes 4
LOC Multiple 3x
Reach Multiple 6x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
