Harvey Tool

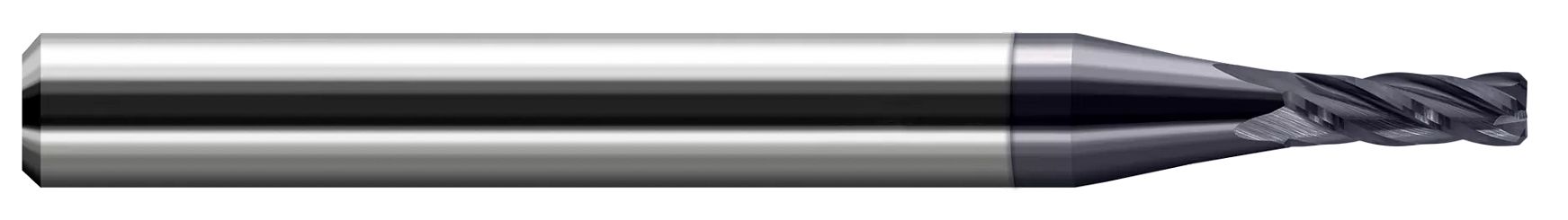

Harvey Tool 805224-C3 | 3/8" Diameter x 3/8" Shank x 1-1/8" LOC x 2-1/2" OAL 4 Flute AlTiN Coated Carbide Corner Radius End Mill

Harvey Tool 805224-C3 | 3/8" Diameter x 3/8" Shank x 1-1/8" LOC x 2-1/2" OAL 4 Flute AlTiN Coated Carbide Corner Radius End Mill

SKU: 25174798

$66.40 USD
$66.40 USD $66.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 54 Grams

Ver todos los detalles

Harvey Tool Corner Chamfer End Mills are CNC ground in the USA from solid carbide, feature a 45 Degree corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.

  • Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
  • 45 Degree corner chamfer protects corners on the end mill and can create small chamfers and edge breaks
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.3750" (3/8)
Length of Cut (Inch) 1.1250" (1-1/8)
Overall Length (Inch) 2.5000" (2-1/2)
Chamfer 0.0050"
Number of Flutes 4
Angle per Side 45
LOC Multiple 3x
Shank Diameter (Inch) 0.3750" (3/8)
Coating/Finish C3
