Harvey Tool

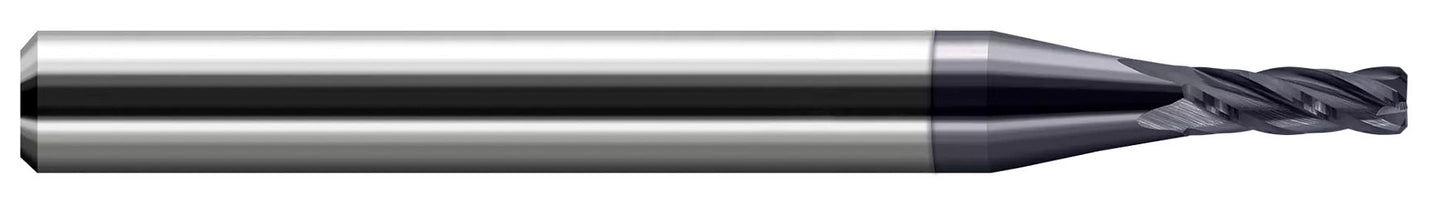

Harvey Tool 805178-C3 | 5/64" Diameter x 1/8" Shank x 15/64" LOC x 1-1/2" OAL 4 Flute AlTiN Coated Carbide Corner Radius End Mill

Harvey Tool 805178-C3 | 5/64" Diameter x 1/8" Shank x 15/64" LOC x 1-1/2" OAL 4 Flute AlTiN Coated Carbide Corner Radius End Mill

SKU: 25174788

$33.40 USD
$33.40 USD $33.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles

Harvey Tool Corner Chamfer End Mills are CNC ground in the USA from solid carbide, feature a 45 Degree corner chamfer to protect the corners of the end mill, and create consistent heat and wear along the chamfer by distributing forces evenly.

  • Chamfered corner creates consistent heat and wear along chamfer by distributing forces evenly
  • 45 Degree corner chamfer protects corners on the end mill and can create small chamfers and edge breaks
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.0780" (5/64)
Length of Cut (Inch) 0.2340" (15/64)
Overall Length (Inch) 1.5000" (1-1/2)
Chamfer 0.0050"
Number of Flutes 4
Angle per Side 45
LOC Multiple 3x
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish C3
